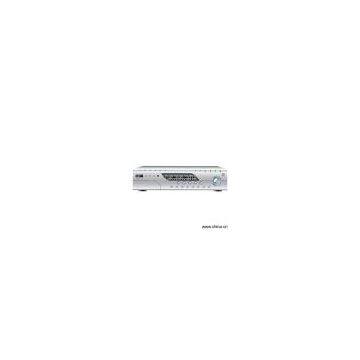

Sell Standalone DVR

Model No.:HB-6016A8
Product Origin:China
Brand Name:Supersun
Price Terms:FOB, FCA, CIF
Payment Terms:T/T, L/C
Certification:
Description:Specifications: 1) Name: HB-6016v8 Channel Embedded Digital Video Recorder 2) Video input: PAL, NTSC 16 channels 3) Composite video input: BNC port, 1VP-P, 75 ohm 4) Video output: PAL, NTSC 5) Composite video output: BNC port, 1VP-P, 75 ohm 6) VGA output frequency: 60-85Hz 7) Resolution ratio: 480 x 320 - 1024 x 768 8) Audio input: 8 channels (lotus, 20-100mv, 10K ohm) 9) Audio output: lotus, 20-100mV, 1K ohm 10) Alarm ports: a) Alarm input: 9 alarm input b) Alarm output: 4 alarm output 11) Compression arithmetic: H.264 (video compression), G.722 (audio compression) 12) Image resolution ratio: real-time display (704 x 576), video compression CIF (352 x 288) 13) Audio sampling ratio: 8K sampling point/s, 16 bit/sampling point 14) Quality of the record: 6 in all, from high to low 15) Operating system: embedded real-time operating system (RTOS) 16) Network port: Adaptive Ethernet Port of 10M/100M 17) HDD: supports 8 parallel IDE and 2 SATA 18) Series port: RS485 19) Backup: SATA, Network 20) Power supply: 220+- 30%V, 50+- 3%Hz 21) Working temperature: -10°C - 55°C 22) Working humidity: 10 - 90% 23) Power consumption (without hard disk): 30W 24) Dimensions (W x D x H): 440 x 435 x 96.6mm 25) Main functions: HB-6000 series embedded digital video recorder, adopting high performance criterion of embedded real-time multiple operating system (RTOS) and embedded processor to set up a monitor system perfectly. All the codes are embedded in flash that the system is steadier and will not be interfered by external factors such as virus. It also can work steadily for a long time under abominable environment and under the situation with no guard
