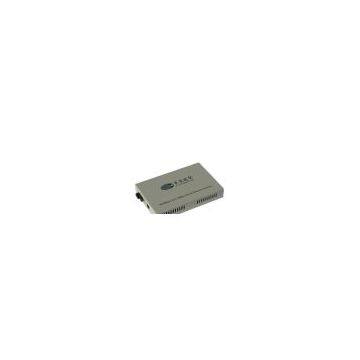

Sell 10/100M Media Converter

Place of Origin	China

Model No.:OnAccess2001
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Extended transmission distance of Ethernet, expanded Ethernet coverage area. The maximum transmission distance reach 5 kilometers when use multi-mode optical fiber. The maximum transmission distance reach 120 kilometers when use single-mode. The device is of small size and users could select built-in/built-out power supply. User may base on his own requirements to meet demand of highly reliable and high-performance transmission in various environments. Product features: Media transmission distance: 2-120km Transmission rate: 10M/100M bps auto-negotiations, supporting full/half duplex work mode Single-mode or multi-mode optical fiber, SC connector, wavelength:850nm, 1310nm, 1550nm optional Auto MDI/MDIX crossover and storm protections High grade photoelectricity module, offer excellent photo-electricity characteristic, ensure the reliable data transmission, long work time. Complies with IEEE802.3, Ethernet (802.3 Ethernet Standard) Complies with IEEE802.3u, Ethernet (802.3u Fast Ethernet Standard) Complies with IEEE802.3x flow control Optical Interface Optical Ethernet 100Base- F X Single single-mode fiber, single wavelength 1310nm, single SC/PC connector, operating distance 15km Single single-mode fiber, dual wavelength 1310 / 1550nm, single SC/PC connector, operating distance 40km Dual single-mode fiber, single wavelength 1310nm or 1550nm, dual SC/PC connectors, operating distance 60km Dual multimode fiber, single wavelength: 1310nm, dual SC/PC connectors, operating distance 2km Physical and Environmental Weight: 0.5kg Operating temperature: -10 ~ 50° Storage temperature: -25 ~ 65° Humidity: 10% ~ 90% RH Non-condensing. Power Supply: 100 ~ 240v, 50 ~ 60Hz Size: 173 x 115 x 30mm (Power built-in) 94 x 71 x 26mm (built-out) Order Information: border=0>
