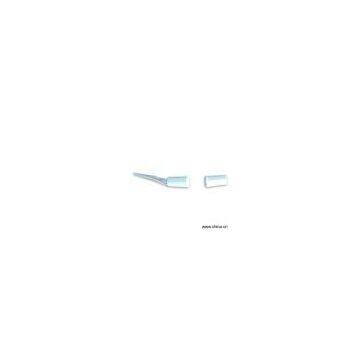

Sell Recessed Mount Magnetic Contact

Model No.:RW-S10(1A), RW-S11B(1B), RW-S12C(1C)
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Recessed Mount Magnetic ContactModel Number: RW-S10(1A), RW-S11B(1B), RW-S12C(1C)Place of Origin: ChinaSpecifications: 1) Figure: 3/8" (diameter) x 3/4" (length) 2) Contact form: 1A (NO type), 1B (NC type), 1C (SPDT) 3) Installation: recessed mount 4) Detection gap: 1A >17mm, 1B/1C >15mm, WG type >32mm 5) Main characteristics: a) Stubby, mini size, economical b) Colors: white (WH), brown (BR) c) Ideal for tight fitting window frames d) Ordinary magnet is 1/4" x 0.54" magnet with a shell, complete with many kinds of bare magnets, add "W/.xx" or "WG" to express, use "DM" to express donut magnet 3/8" x1/8" e) Wire: 22AWG, 18" standard leads, if it is stated length, length value and "ZIP" must be added after PN 6) Ordinary products 1,250pcs every box (about 15kg) 7) Compliant with RoHS 8) Order information and explanation: a) RW-S 10 WH: white, 1A (NO type) ordinary products b) RW-S 10 BR DM: brown, 1A (NO type) products, donut magnets, detection gap >12.5mm c) RW-S 10 WH W/.54: white, 1A (NO type) products, bare magnets 1/4" x 0.54" d) RW-S 10 WH 10' ZIP: white, 1A (NO type) products, wire is 22AWG 10' length ZIP wire e) RW-S 10 BR WG: brown, 1A (NO type), wide gap products (detection gap >32mm) f) RW-S 11B WH: white, 1B (NC type) ordinary products g) RW-S 12C BR: brown, 1C (SPDT) ordinary products
