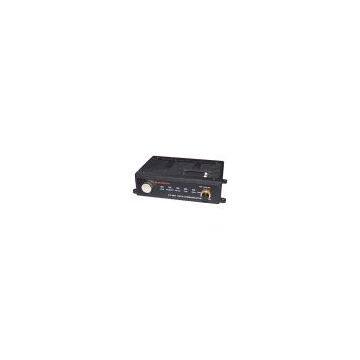

Sell 10W VHF/UHF SCADA Data Transceiver

Product Name: 10W VHF/UHF SCADA Data TransceiverModel Number: FC-208Place of Origin: ChinaSpecifications: 1) Carrier frequency: VHF/UHF 2) MSK 3) Channel spacing: 25KHz 4) Channel: 64 5) CTCSS: 38 6) Air data rate: 1,200bps/2,400bps 7) Audio modulation range: 300 ~ 3400Hz 8) Speaker: 2W / 8Ω 9) Antenna impedance: 50Ω 10) Voltage: DC 9 ~ 15V, 13.8V typical 11) Temperature: -40°C ~ +70°C Receiver: 1) Sensitivity: ≤0.25μV (12 dB SINAD ) 2) IF1: 45MHz 3) IF2: 455kHz 4) Intermodulation rejection: ≥75dB 5) Adjacent channel selectivity: ≥70dB 6) Audio distortion: ≤3% 7) FSK output amplitude: 0 ~ 450mV 8) AF output amplitude: 0 ~ 5V Transmitter: 1) Frequency stability: ±2.5ppm 2) Frequency deviation: ≤±5kHz 3) Adjacent channel rejection: ≥70dB 4) Startup time of transmitter: ≤50ms 5) Audio distortion: ≤3% 6) RF power: ≤10W 7) Interface: RS-232/RS-485, data rate: 1200 ~ 9600bps optional, format: 8N1/8E1/8o1 optional 8) Voltage: DC 9 ~ 15V (typical 13.8V) 9) Standby current of receiver: ≤50mA (power-saving status) 10) Transmitting current: ≤2A (13.8V 10W) 11) Size: 160 x 115 x 45mm 12) Weight: 900g
