Home > Products > IEC/UL Test Probe > IEC60065 Figure 9 Test Plug for Antenna Coaxial Socket

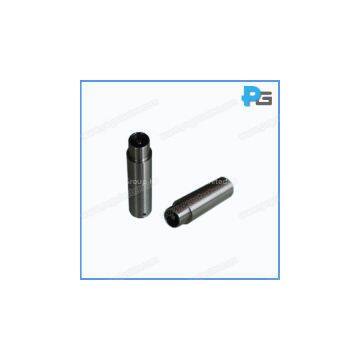

IEC60065 Figure 9 Test Plug for Antenna Coaxial Socket
USD $200 - $200
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
IEC61032 Figure 12 Child Jointed Finger Test Probe 18
-
IEC61032 Figure 13 Small Test Finger Probe 19 with 5.6mm diameter
-
500V Insulation Resistance Tester
-
PG-1S CCD Spectroradiometer and Integrating Sphere Test System
-
ESD-2000Q ESD Gun Electrostatic Discharge Simulator
-
LSG-6K10 IEC61000-4-5 Lightning Surge Generator
Product Description
Test plug for Antenna Coaxial Socket
1. Introduction
The test plug is designed according to IEC60065 figure 9, it is applied to test the antenna coaxial socket of live parts, and it should endure the mechanical strength during the endurance test, impact test, torque test and etc.
2. Specification
1. Length j: 43±0.4mm
2. Length g: 40±0.4mm
3. Depth d: 9.1mm
4. Depth e: 7.112mm
5. Depth f: 0.8±0.4mm
6. Outer diameter h: 12±0.4mm
7. Outer diameter a: 9.576mm
8. Outer diameter b: 8.05mm
9. Shaft diameter c: 2.438mm
10. Radius K: 0.3mm
11. Aperture: 1.5mm
12. Material: steel
13. Standard: IEC60065-2005 figure 9, GB8898-2011 figure 9
