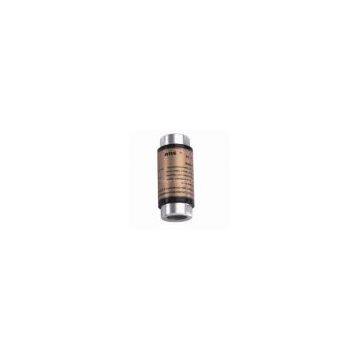

Breakaways

Breakaways
Features:1) Designed to be installed on fuel dispensing hoses, and  will separate when subjected to a designed pull force2) The dual valves seat automatically stops the flow of fuel and limiting any fuel spillage, while protecting the dispensing equipment3) For proper operation, the Aile BC-YC 3/4" should be installed with a straightening hose with a minimum length of 9"4) The Aile BC-YC 1" should be installed  with a minimum  length of 12"5) Materials:    a) Body: aluminum    b) Main seals: viton    c) Guide and poppet: POM    d) Protective sleeve: PVC6) Ordering specifications:    a) BC-YC 801-804    b) Sizes: NPT3/4" x NPT3/4", BSP3/4" x BSP3/4", NPT1" x NPT1",  BSP1" x BSP1"    c) Weights: 230g, 230g, 380g, 380g7) Pull force: the Aile BC-YC 3/4" will break away with a pull force 250 Ibs ±5%, the Aile BC-YC 1"  will break away with a pull force 300 Ibs ±5%8) Certainty of operation: designed to be replaced after separation,  instead of reassembled, to protect against reassembly errors9) Unique double-poppet design: features low pressure drop10) Flow rates:  0-60L/min (3/4"), 0-120L/min (1")11) Working pressure: 0.18MPa12) Low pressure drop: the integral check valve design allows for  minimal pressure drop for faster, high-volume fill-ups13) 100% factory testedOuter packing:100pcs/ctn, 50pcs/ctnCarton dimensions: 26.8 x 48 x 26cm (100pcs), 29 x 29 x 30cm (50pcs)N.W.: 23kg, 19kgG.W.: 26.8kg, 22kg
