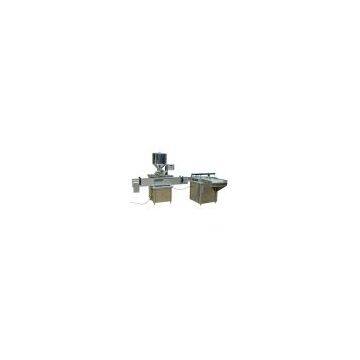

ZSGJ-B Automatic Bi-head Filling Machine

Place of Origin	China

This equipment is specially used for the automatic bottle filling of creamy and liquid materials. It uses compressed air as the power and relies upon an air-path combination to finish bottle-stopping, nozzle lowering, filling, nozzle lifting etc. links. It is set with an electric capacity regulator to have variation of filling dozen more easily, with a secure device to get automatic stop in case the nozzle is resisted when lowering so as not to damage the bottle and make sure of safe production and with a rotary-disk type bottle arranging machine to carry out the fully-auto filling of liquid and cream. This equipment features a reasonably designed system, stable running, accurate filling, low fault rate, without noise during running, a counting function, the stainless steel and PTFE made parts contacting with materials, acid, alkali and high temperature withstand and is really an ideal equipment for the automatic production in the daily chemistry, food, pharmacy etc. trades. Specifications: 1) Filling materiel liquid & cream 2) Filling range: 5-130ml 3) Filling speed: 30-80bottles/min 4) Filling accuracy: 1.5% 5) Working pressure: 0.04-0.06MPa 6) Air consumption: 0.03L 7) Length of bottle: 20-160mm 8) Diameter of bottle: 30-80mm 9) Weight 200kg 10) External dimensions: 1650 x 700 x 1500mm Specifications of bottle feeder: 1) Voltage: 220V 2) Power: 90W 3) Diameter of bottles: 800mm 4) Weight: 90kg 5) External dimensions: 1180 x 900 x 950mm
