Home > Products > Stainless steel bearings > Ball Transfer Unit CY-15A
Ball Transfer Unit CY-15A
- shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | NTL | Model Number | CY-15A |
Product Description
Specifications
ball transfer unit1. high quality material
2. apply for vacuum equipment
3. good anti-corrosive

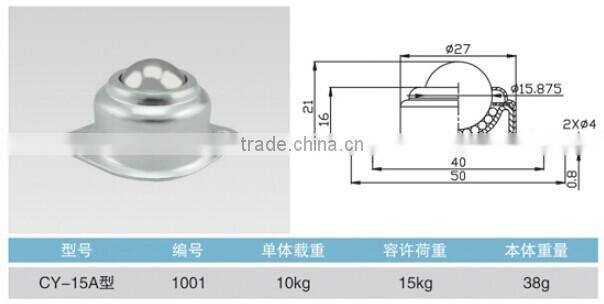

Ball transfer unit CY-15A
Ball transfer units are omni-directional load-bearing spherical balls mounted inside a restraining fixture. They are identical in principle to a ball computer mouse upside-down, or a trackball, except there is an array of them side-by-side. Typically the design involves a single large ball supported by smaller ball bearings.
Model No. | Ball size | Unit load/breaking load |
CY-15A | 15.875MM | 10KGS/15KGS |
CY-16B | 15.875MM | 10KGS/15KGS |
CY-25A | 25.4MM | 25KGS/30KGS |
CY-25B | 25.4MM | 25KGS/30KGS |
CY-30A | 30MM | 40KGS/50KGS |
CY-30B | 30MM | 35KGS/45KGS |
CY-18A | 18MM | 20KGS/25KGS |
CY-38B | 38MM | 45KGS/55KGS |
CY-25E | 25.4MM | 30KGS/35KGS |
CY-38A | 38MM | 60KGS/80KGS |
CY-15H | 15.875MM | 15KGS/25KGS |
CY-15T | 15.875MM | 8KGS/11KGS |
CY-22H | 22MM | 40KGS/55KGS |
CY-25F | 25.4MM | 30KGS/40KGS |
CY-30H | 22MM | 70KGS/88KGS |
CY-19C | 19.05MM | 20KGS/30KGS |
CY-25T | 25.4MM | 20KGS/30KGS |
CY-19D | 19.05MM | 20KGS/25KGS |
CY-12T | 12MM | 5KGS/7KGS |
CY-25D | 25.4MM | 30KGS/40KGS |
CY-8H | 8MM | 3KGS/5KGS |
CY-19F | 19.05MM | 15KGS/20KGS |
CY-25FL | 25.4MM | 15KGS/20KGS |
CY-25FLB | 25.4MM | 25KGS/30KGS |
CY-40F | 40MM | 40KGS/50KGS |
If you need please feel free to contact!
Contact:Skye Gui
Skype:skye_world
Email:skye(at)
Company Profile
Changsha Terry Machinery Co., Ltd. is located in Changsha. Our company enjoys convenient transportation and advanced economy. We have been exporting bearings for 8 years. Our main products are Needle Roller bearings, Cylindrical Roller Bearings, Rod end Bearings, Spherical plain bearings, Track roller Bearings for Guideway, Roller Bearings, Combine Bearings for forklifts, Water Pump Bearings, SNR Auto Bearings and all kinds of Spherical Bearings. We have exported our products to Korea, Iran, Turkey, Bulgaria, Romania, Russia, Italy, Norway, the USA, Canada, etc. We offer OEM service. Our products are applied in many fields. Our Advantages Products Big volume in Stock, No MOQ required We comply with all the international standards, such as ISO9001 and TS16949 standards. Personnel Our sales persons are well trained to accommodate your requests and speak English for your convenience. Our technicians and engineers have 23 years of Experience in the Bearing Industry. Service & Quality control We supply detailed drawings and offer whenever necessary. We inspect every piece of bearing by ourselves before delivery.
