Home > Products > Stainless steel bearings > 9mm steel ball with threaded hole
9mm steel ball with threaded hole
- 2147483647 Piece / Pieces per Month
- shanghai
- D/P D/A Credit Card
You May Like
-
Steel ball transfer unit SP15
-
Plastic nylon ball transfer unit SP25
-
stainless hollow balls 1-60mm size customized 2016 wholesale
-
custom size pounch hole G500 12mm SUS304 stainless steel ball
-
stainless steel ball 1.2mm 1.3mm 1.45mm AISI420C SUS304 AISI316 large stock
-
hollow stainless steel Ball, 19mm steel ball, G10-G2000
Product Details
| Standard | AISI | Grade | 300 Series | |
| Diameter | 9mm | Certification | Other, CE | |
| Hardness | HRC | Place of Origin | Zhejiang, China | |
| Brand Name | netural brand | Model Number | 9mm |
Product Description

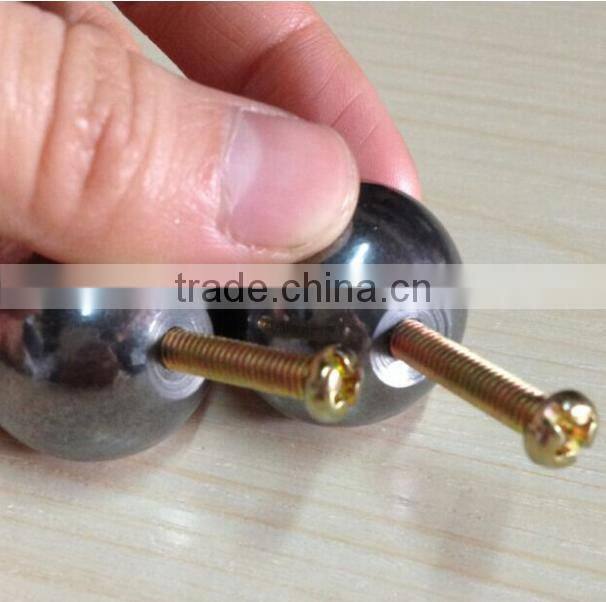

9mm steel ball with threaded hole
1. Raw material: a ball starts in wire or rod form.
2. Heading: In the first step, heading machines cut wire into short lengths and form
it into spherical shapes between dies.
3. Flashing: A process that gives a ball blank a rough finish and removes the excess
material around the ball.
4. Heat-treating: Harden the balls by subjecting a metal or alloy to controlled heating
and cooling to improve hardness and other properties.
5. Hard Grinding: Slow, meticulous grinding assures proper sizing and sphericity.
6. Lapping: This process has two steps, first is simple lapping, then is fine grinding.
Both of them is to polish the balls to a shiny finish and to the exact size required by ISO 3290 Grade.
7. Clean: First, clean the surface of balls; then use the dehydrated oil to dry off the balls; the last step is applying antirust oil for the balls. When these steps have done, each ball will be selected by machine or naked eye to make sure every ball is perfect.
8. Inspection: Each batch of products will accept measurement and inspection by the special inspectors, to check whether the products consistent with the customer's requirement.
steel ball | |||||||
Material Specification
| C | Cr | Mn | Si | P | S | |
0.95-1.10% | 1.30-1.60 % | 0.25%Max | 0.15-0.3% | 0.03% Max | 0.025%Max | ||
Mechancial Properties | Tensile Strength | Yield Strength | Density | ||||
325,000 psi | 295,000 psi | 0.283 lbs/cu in | |||||
Size Range | 0.8mm(1/32") to 63.5mm(2-1/2") | ||||||
Hardness | HRC60~66 | ||||||
Grade | G10~G1000 | ||||||
Physical Property | No Corrosion resistance ,Magnetic | ||||||
Application | Universal for many applications. For example: balls & roller bearings, Linear monition, Balls lead screws, grinding media | ||||||
picture showing :
if you are interesting in steel ball, welcome to inquiry !
feedback :
email : michelle(at)
skype: michelle1920112
whatsapp: +8618374894740
Company Profile
Changsha Terry Machinery Co., Ltd. is located in Changsha. Our company enjoys convenient transportation and advanced economy. We have been exporting bearings for 8 years. Our main products are Needle Roller bearings, Cylindrical Roller Bearings, Rod end Bearings, Spherical plain bearings, Track roller Bearings for Guideway, Roller Bearings, Combine Bearings for forklifts, Water Pump Bearings, SNR Auto Bearings and all kinds of Spherical Bearings. We have exported our products to Korea, Iran, Turkey, Bulgaria, Romania, Russia, Italy, Norway, the USA, Canada, etc. We offer OEM service. Our products are applied in many fields. Our Advantages Products Big volume in Stock, No MOQ required We comply with all the international standards, such as ISO9001 and TS16949 standards. Personnel Our sales persons are well trained to accommodate your requests and speak English for your convenience. Our technicians and engineers have 23 years of Experience in the Bearing Industry. Service & Quality control We supply detailed drawings and offer whenever necessary. We inspect every piece of bearing by ourselves before delivery.
