Sell Embossed Keypads (Metal Dome Type)
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
Product Origin:China
Brand Name:J&T
Price Terms:FOB
Payment Terms:T/T, L/C
Certification:

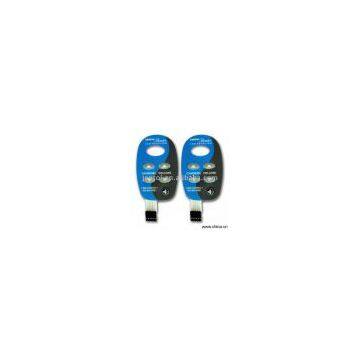

Description:Product Name: Embossed Keypads (Metal Dome Type)Model Number: JT-MSPlace of Origin: ChinaSpecifications: 1) Electrical: a) Max. circuit rating: 35V DC 100 milliamps, 1W b) Contact resistance: 10 - 500Ω (different from the trace length and material) c) Insulation resistance: 100MΩ at 100V d) Dielectric withstand: 250V RMS (50 - 60Hz/min) e) Contact bounce: <5ms f) Life expectancy: 1,000,000 closures 2) Mechanical: a) Actuation force: 50g - 400g b) Switch stroke: 0.1mm - 1.5 mm (figures vary as per key designs) 3) Environment: a) Operation temperature: -40 - 80°C b) Storage temperature: -40 - 80°C c) Humidity: 40°C, 90% - 95% for 240 hours d) Vibration: 20G's max. (10 - 20Hz, Mil - Std - 202, M204, condition B)
