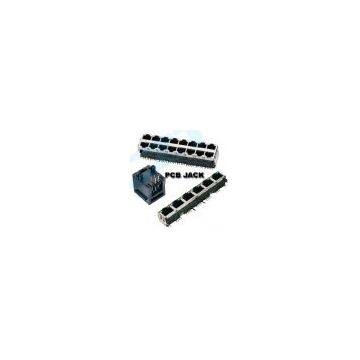

Sell PCB Jacks
Negotiable
/ Set
20 Sets(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description
Product Origin:China
Brand Name:CZT
Price Terms:
Payment Terms:T/T in advance, L/C at sight
Certification:UL, CSA
Description:For telephone, networks, and other equipment Electrical 1) Current rating: 1.5AMPS 2) Voltage rating: 125VAC 3) Insulation resistance: 100megohms mini 4) Withstand voltage: AC 1,000V RMS 50Hz or 60Hz 1 min 5) Contact resistance: 20millmhos mini Mechanical 1) Insertion force: 350g/2contacts, 500g/4contacts, 750g/6contacts, 900g /8contacts, 1050g10contacts 2) Retention strength: 7.7kg between jack and plug 3) Crimp tensile strength: 2.27kg 4) Durability: 750mating cycles min Material 1) Housing: ABS resin (ul94v-0); glass filled PBT (ul94v-0) 2) Contact wire: 0.45mm dia phosphor bronze gold plating over nickel; 0.35mm thickness phosphor bronze alloy selective gold plating over nickel 3) Shielding: 0.25mm thickness copper alloy with tin plated 4) Gold plating: 3inch, 6u inch, 15u inch, 30u inch, 50u inch Price Term: FOB Shanghai
Contact Us
- Wenzhou Yihua Communicated Connector Co., Ltd.
- Contact nameMr.Wang Haiping Chat Now
- Phone86-577-62812399
- AddressHouxi Industry Park, Wengyang Town, Yueqing City, Zhejiang Province. China
