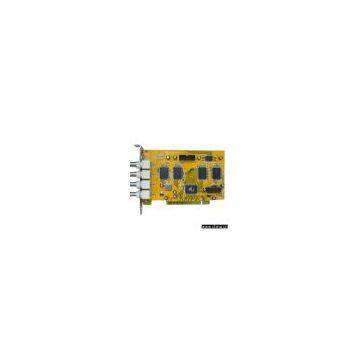

4ch 100f MPEG4 Video Capture Card

Place of Origin	China

Features: 1) The new high speed (100/120 frames per second) PCI card comes with 4 channels video2) Our system stores your recordings in highly software compressed MPEG4 files format on your PC's hard drive3) Imagine not having to watch endless hours of recordings of nothing and be able to choose motion activated video capture only. Our surveillance system can alert you by email, or phone to alert you motion has activated the secured area and be alerted that the area has been violated4) Simple to install and very affordable hardware requirements: a) Intel's CPU is recommended b) Motherboard based on Intel chipset is recommended c) At least 128M of RAM (256M required for 16 cameras) d) At least 32M of RAM for display adaptor. ATI Redeon 7000 or above and Nvidia Geforce serials is recommended 5) Software requirement: a) System require Windows 2000 or Windows XP (Windows 95, 98 is not supported) b) Windows Directx8.0 or above specifications: i) Input signal - 4 channels video ii) Display fps 120fps/NTSC per card iii) Record fps 120 fps/NTSC per card iv) Display screen 1 / 4 full screen v) Color adjust - adjustable light, contrast, hue, saturation by individual camera 6) Resolution: 160 x 120, 240 x 180, 320 x 240, 352 x 288, 480 x 360, 640 x 480 7) Record mode event: continuous / schedule recording 8) Compression: special MPEG4 format9) Frame size: 1~2.5K, 1,200~4,000hr / 80GB 10) Multi-task: monitoring / recording / PTZ control / remote / backup 11) Motion detection: 16 zone x multi area for each camera 12) Storage: HDD / VDRAM / CD-RW / DAT / MO / ZIP / RAID13) PTZ: RS485 controlled PTZ and light / power / wiper 14) Playback speed: forward / back / step / fast / slow 15) Schedule: forward / back / step / fast / slow 16) Password: system / playback / remote users producing area:China payment:T/T
