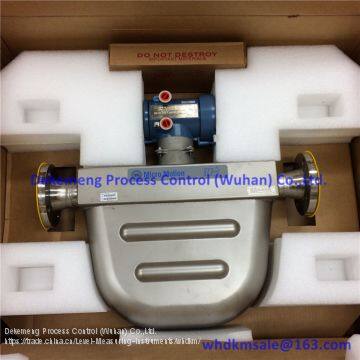

Micro Motion 1700 and 2700 Field and Integral-Mount Transmitter

Dekemeng Process Control (Wuhan) Co.,Ltd.

Alisa Peng  Sales Representative

Tel： +86 027-51013708

Mob: +86 13307111202

FAX：+86 027-88068180

Email：whdkmsale@yahoo.com,whdkmsale@163.com

Http: //www.

Micro Motion 1700 and 2700 Field and Integral-Mount Transmitter

Introduction

Powered by MVD Technology, these versatile field-mount transmitters are built with an advanced architecture and provide a wide variety of I / O and application flexibilities, making them the top choice for compact integral mounting.

Specifications

Housing

Polyurethane-painted cast aluminum or CF3M stainless steel; NEMA 4X (IP66)

Weight

Painted aluminum, 4-wire remote:

with display: 8 lb (4 kg)

without display: 7 lb (3kg)

Power

18 to 100 VDC or 85 to 265 VAC

Mounting

Integral or remote mounting options (stainless steel versions are always remote mounted)
May be remotely connected to any 4-wire or 9-wire Micro Motion sensor
View product data sheet for full details.

Available Outputs

1700: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
2700:
Analog: mA w/ Bell 202 HART FO/DO RS485 HART and Modbus
View product data sheet for full details.

Features

Maximize flexibility with integral or remote mounting

Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing

Lower wiring costs and install easily and quickly

Eliminate the need for additional instruments with concentration and net-flow measurement

Rely on custody-transfer approval and certification for SIL2 and SIL3

Verify sensor health in-line, with the process running and without secondary references with true in-situ verification

Gain access to additional diagnostics and process information without added wiring costs with WirelessHART?

Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface
