Home > Products > spline parts > Spline Parts, Spline Shaft, Spline Flange
Spline Parts, Spline Shaft, Spline Flange
- Shanghai
- T/T L/C D/P D/A
- 30 days
You May Like
Product Details
| Brand Name | PM | Place of Origin | China | |
| Model Number | spline (001) | Material | Other, Copper, Steel, Stainless Steel, Alloy Steel, etc. | |
| Length | 15000mm | Structure | Spline | |
| Coatings | Other, oxide black, nickel alloy, chrome plated, Painting, etc. |
Product Description

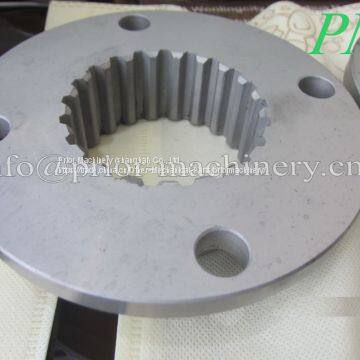

Spline parts, Spline Shaft, Spline Flange -- Good Quality Made By Prior Machinery
Offering all kinds of machining parts, forging & casting parts with customized type. Products include PIN, sprocket, sheet metal, spline parts, flange, tie rod of cylinder, seal housing, bearing housing and etc.
Spline Parts Features:
Material | 42CrMo/4140, 4130, CK45, 50Mn, Stainless Steel, Copper, etc. |
Surface | Nitriding, Oxide (black), ZINC, etc. |
Usage | Machinery transmission system, steering system. |
Spline Parts Specifications:
Producer | Prior Machinery (shanghai) Co.,Ltd. |
Producing Process | Forging/Cutting -- Rough Turning -- Quenching and Tempering -- CNC Lathe Turning -- Spline Broaching/Slotting/ -- CNC Machining Centre Machininng -- Grinding-Nitriding -- Label --Packaging |
Producing Equipment | 4-axis CNC machining center (VMC) -- HAAS/Hyundai -- 8 3-axis CNC machining center (VMC) -- HAAS/Hyundai - 12 CNC Turning center and Lathe -- Haas/DMG -- 5 ID/OD Grinding machine -- Zhejiang -- 4 Flat Grinding Machine -- Zhejiang -- 2 CNC milling machine -- Taiwan -- 5 Drilling/Tapping machine -- jiangsu -- 10 CMM -- Hexagon -- 1 |
Testing Equipment | Height Gage & Coordinate Measuring Machine & Hardness Tester & Video Measuring Machine & Roughness Tester & Torsion Tester & Salt Spray Tester. |
Heat Treatment | Quenching and tempering, Carburizing & Quenching,High-frequency quenching, Nitriding. |
Advantages | 1>. Nitrding reaching HV600 Depth 0.5. 2>. Accurate Tooth making reaching DBP +/-0.025. 3>. Accurate Matching Internal and External spline with long service life. |
Deliver Date | 6-10 weeks. |
Inspection | 100%, or taking inspection acc to certain proportion. |
Package | Steel pallet or wooden box. |
ABOUT US:
PRIOR MACHINERY is a specialized manufacturer of machining/forging/casting parts in China from 1990. Mainly producing sheet metal, spline parts, flange+spline parts, flange, sprocket, spline shaft, pin, tie of cylinder rod, roller, pully, bearing housing and etc.

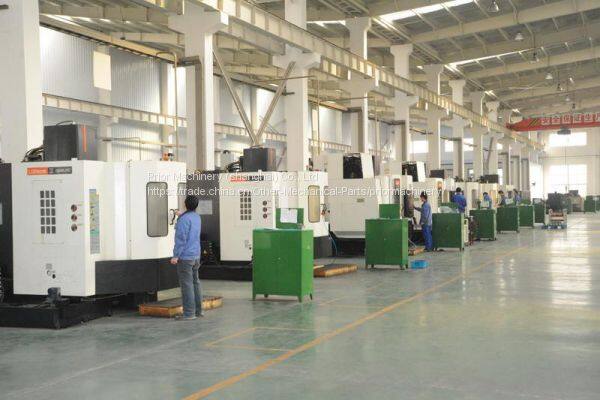

We have our own machining workshop, heat treatment workshop and forging factory. Our total staffs is more than 800, of which more than 100 are senior technical engineer.
We have many national advanced facilities in forging, casting, mechanical machining and heat-treatment. Our factories are located at Changzhou, Jiangsu province, China, and we have a office at Jiading industry, Shanghai, China.
We has established a complete quality control system, and have several labs with all kinds of Mechanic & Chemical Property Testing Equipments. We do IQC, IPQC, FQC to guarantee our quality.
Our products have been exported to Australia and America from 2003. Warmly welcome any of your inquiry!
