Home > Products > Full HD LCD&LED Screen > 42 Inch Slim Splicing LCD Video Walls
42 Inch Slim Splicing LCD Video Walls
Negotiable
/ Unit
1 Unit(Min. Order)
- shenzhen
- Credit Card PayPal
You May Like
-
46inch 5.3 mm Ultra Narrow Bezel Lcd Video Wall
-
46inch 5.3 mm Ultra Narrow Bezel Lcd Video Wall
-
46inch 5.3 mm Ultra Narrow Bezel Lcd Video Wall
-
42inch Splicing Video Wall Digital Display pc tv Computer
-
42inch Splicing Video Wall Projector Meeting Monitors
-
42inch Video Wall Meeting Full hd Media Player
Product Details
| Place of Origin | Guangdong, China | Brand Name | NO | |
| Model Number | HQ420-V |
Product Description
Specifications

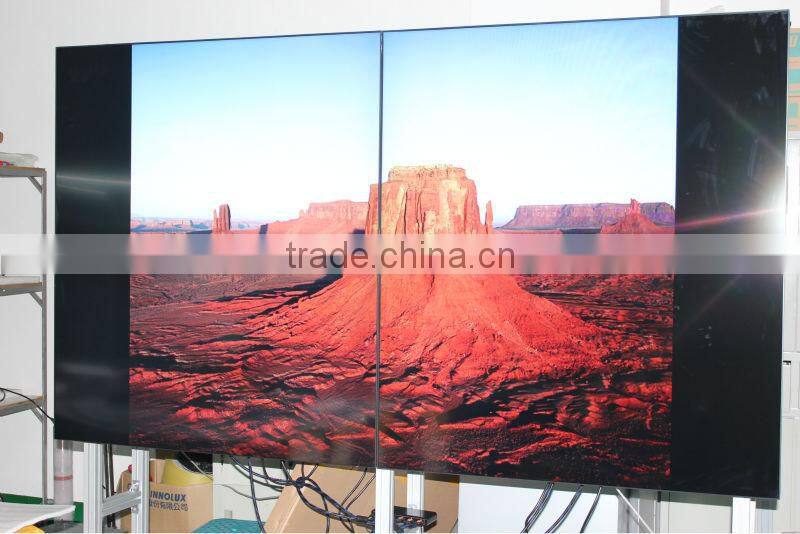

42 inch slim splicing LCD video walls+indoor use
+full HD 1080p
+wide screen
+CE GOT
Product number : HQ420-V
42 inch slim splicing LCD video walls
Features:
Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.
Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
One Screen,Four Image,Image Roaming,M*N*4 dispaly
HD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design ---easy installation ,extensible,arbitrary combination
Stable performance,suitable working for a long time
| Specifications | ||||||||
| Model No. | hq420-v | |||||||
| Panel Size | 42" LG DID LCD Screen(with narrow bezel 5.3mm,with LED Backlight) | |||||||
| Display area | 1210(W)*680.8(H)(mm) | |||||||
| Aspect Ratio | 16:9 | |||||||
| Max Resolution Support | 1920x1080 | |||||||
| Color | 8Bit,16.7M | |||||||
| Brightness (nits) | 600cd/m2 | |||||||
| Contrast | 2500:1 | |||||||
| Visual Angle (H/V) | 178° | |||||||
| Response Time | <=6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||
| Input and output | ||||||||
| DVI | 1 | |||||||
| HDMI | 1 | |||||||
| VGA | 1 | |||||||
| YPbPr | 1(BNCx3) | |||||||
| S-video | 1(BNCx2) | |||||||
| Composite Video Input/(AV) | 3(BNCx3) | |||||||
| Composite Video Output | 2(BNCx2) | |||||||
| Control signal input and loop out | RS232(RJ45-8) | |||||||
| Split Screen | Support Picture in Picture(PIP/POP) | |||||||
| Power | ||||||||
| Power Supply | AC100V~240V | |||||||
| Maximum Power Consumption | 250W | |||||||
| Standby Power Consumption | <=3W | |||||||
| Temperature | ||||||||
| Working Temperature | 0°C~50°C | |||||||
| Working Humidity | 20%-80% | |||||||
| Dimension | ||||||||
| Video Wall Controller(Built-in each Screen) | ||||||||
| Model No. | HQ550-V | |||||||
| Input | CVBS | 1*BNC port, support PAL / NTSC all formats | ||||||
| VGA | 1*D15 port, support SVGA / XGA / WUXGA | |||||||
| DVI | 1*DVI-I port,support SVGA / XGA / WUXGA | |||||||
| HDMI | 5*BNC ports, support SVGA / XGA / WUXGA | |||||||
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display | ||||||
| CVBS | support PAL/NTSC all formats | |||||||
| DVI | 1*DVI-I port,support SVGA / XGA / WUXGA | |||||||
| Operate mode | Panel key operation(need customization) | |||||||
| Standard RS232 port( provide free control software) | ||||||||
| ADD Code | ||||||||
| Engineering software | XK _LCD_CONTROL_Manager, RS232 interface control (1 input, 2 looping out) | |||||||
| Working temperature | 0~70 °C | |||||||
| working humidity | 5~95 %RH | |||||||
| AC voltage power supply | 100-240V/50, 60Hz | |||||||
| power consumption | Max 300W,according to different Screen models | |||||||
| Dimension | 307×283×55(mm) | |||||||
| Weight | About 3.5KG | |||||||
Our Services
1. Customized requirment is available , OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )
Packaging & Shipping
