Home > Products > All in one Computer > Vertical LCD with Network double sided touch screen Kiosk

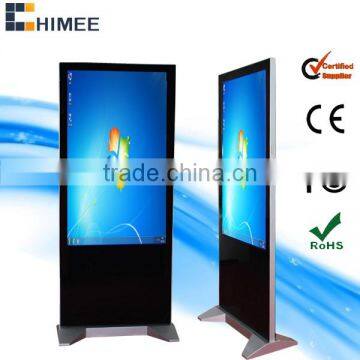

Vertical LCD with Network double sided touch screen Kiosk

FOB Price

USD $1 - $1,500 / Unit

1 Unit(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	All-In-One
Screen Size	Other, 55 inch	Processor Brand	Intel
Memory Capacity	Other, 2 - 16 GB	Hard Drive Capacity	Other, 500GB or more
Graphics Card Type	Integrated Card	Display Type	Other, LED
Widescreen	Yes	Optical Drive Type	Other, up to customer's choice
Processor Main Frequency	1037U, I3, I5, I7	Brand Name	CHIMEE
Model Number	HQ55ES-C1	Place of Origin	Guangdong, China

Product Description

Model No.: HQ55ES-C1

Product Name : Vertical LCD with Network double sided touch screen Kiosk

The outline drawing :

55 inch Panel parameter list :

Panel Size	55 inch
Aspect Ratio	16:9
Active Area:	1209.60mm (H) x 680.40mm (V)
Pixel Pitch	0.200mm (H) x 0.200mm (W)
Max Resolution	1920 x 1080
Color	16.7M
Brightness	450cd/m³(Optional)
Contrast Ratio	3500:1
Response Time	6.5ms
Panel life	Above 50,000hours

The PC Solutions:

1037U Solution

CPU	Intel Celeron 1037U Daul Core 1.8GHz
Chipset	NM70
RAM	DDR III / 1333 / 4G (Up to 8GB)
Graphics	Intel HD 2500
Audio	8+2 Channel HD Audio controller
Network Interface Card	10/100/1000M Gigabit Ethernet Controller
WiFi	High quality WiFi module included (802.11 B/G/N)
H.D.D.	500GB SATA HDD or 128GB SSD
Speak	2 build-in high quality stereo speakers (3w or 5w)
O.D.D	DVD-RW (Optional)
Mouse/Keyboard	Bluetooth suit (Optional)
Pre-Installed OS	Windows XP/VISTA/7 or Linux (Optional)
TV Tuner	Optional

I3 Solution

CPU	Intel i3 4 Gen Daul Core 3.6GHz
Chipset	H81 Chipset
RAM	DDR3 / 4GB / 1333MHz (Up to 16GB)
Graphics	Integrated with CPU
Audio	HD 8-channel (7.1) audio subsystem
Network Interface Card	10/100/1000 Mbits/sec Ethernet LAN connectivity
WiFi	High quality WiFi module included (802.11 B/G/N)
H.D.D.	2.5 inch 500GB SATA HDD or 128GB SSD support (Capacity can be customized)
Speak	2 build-in high quality stereo speakers (3w or 5w)
O.D.D	DVD-RW (Optional)
Mouse/Keyboard	Bluetooth suit (Optional)
Pre-Installed OS	Windows XP/VISTA/7 or Linux
TV Tuner	Optional

I5 Solution

CPU	Intel i5 4 Gen Quad Core 3.2GHz
Chipset	H81 Chipset
RAM	DDR3 / 4GB / 1333MHz (Up to 16GB)
Graphics	Integrated with CPU
Audio	HD 8 channel audio system
Network Interface Card	10/100/1000 Mbits/sec Ethernet LAN connectivity
WiFi	High quality WiFi module included (802.11 B/G/N)
H.D.D.	500GB SATA HDD or 128GB SSD support (Capacity can be customized)
Speak	2 build-in high quality stereo speakers (3w or 5w)
O.D.D	DVD-RW (Optional)
Mouse/Keyboard	Bluetooth suit (Optional)
Pre-Installed OS	Windows XP/VISTA/7 or Linux
TV Tuner	Optional

I7 Solution

CPU	Intel i7 4 Gen Quad Core 8 threads 4.0GHz
Chipset	H81 Chipset
RAM	DDR3 / 4GB / 1333MHz (Up to 16GB)
Graphics	Integrated with CPU
Audio	HD 8 channel audio system
Network Interface Card	10/100/1000 Mbits/sec Ethernet LAN connectivity
WiFi	High quality WiFi module included (802.11 B/G/N)
H.D.D.	500GB SATA HDD or 128GB SSD support (Capacity can be customized)
Speak	2 build-in high quality stereo speakers (3w or 5w)
O.D.D	DVD-RW (Optional)
Mouse/Keyboard	Bluetooth suit (Optional)
Pre-Installed OS	Windows XP/VISTA/7 or Linux
TV Tuner	Optional

Product Features:

1. A+ grade LCD/LED panel

2. High class steel & aluminum

3. Tempered glass or acryl board on the surface

4. Easy Control with OS: Win 7/8, Linux or Ubuntu

5. Easy connection to other devices with HDMI,DVI,VGA ports

6. Touch Screen Optional

F A Q:

1. What is the enclosure made with? Is the product bandal-proof?

: All our frame enclosure is made with very strong and durable steel metal. And the product dimensions can be customized according to customers request.

2. Does this product have tempered glass on the surface of LCD or LED panel?

: Yes, all our products have 2-8mm tempered glass on the surface of panel.

3. What built in PC solution does this all in one computer have?

: We set Intel 1037U (Dual core), i3 (Dual core), i5 (Quad core), i7 (Quad core) CPU solutions according to customers request.

4. Does this product support Touch Function?

: Yes, we can can offer 2/6/12/32 points touch frame according to customers request.

5. What input/output ports does this product have?

: Our touch all in one computer originally have 4 USB ports, and we can add HDMI/DVI/VGA ports according to customers request.

Chimee's Certification:

Chimee's Order process:

Chimee's A/S Terms:

1. Online technical support with Skype, Yahoo messenger, MSN, Teamview etc.

2. Free spare parts shipping, after checking by pictures and videos, if we confirm the damage not cause by human, we will ship spare parts to do the replacement for free.

3. Online support and sending user manual for buyer's technician to do the replacement of the damage parts.
