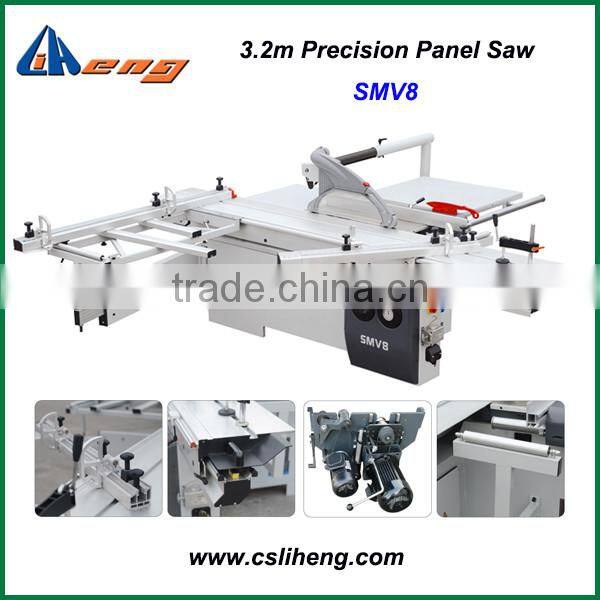

SMV8, 3200mm 5.5kw Precision Panel Saw

 3200m 5.5KW precision panel saw,  SMV8,  also named sliding table saw, is made to processing the panel of MDF, Particle board, Man made wood based panel, ABS Board, PVC Board, Perspex Board and solid wood material, with similar structure and hardness.

Compared with precision panel saw, model MJ6132TY, model SMV8, has 435mm width sliding table, 5.5kw motor, full size addition table, and Max installed saw web can be 350mm.

Specification of 3200mm 5.5kw Precision Panel Saw

Model :SMV8

Sliding table size: 3200*435mm;

Max sawing length: 3200mm;

Max sawing width: 1250mm;

Saw blade diameter:

300mm (250-350mm);

Max sawing height: 75mm;

Sawing height at 45^o: 51.5mm;

Spindle speed: 3000/4000/5000rpm;

Spindle diameter: 30mm;

Titling angle: 0-45^o;

Main motor: 5.5kw;

Scoring saw blade diameter: 120mm;

Scoring saw speed: 8000rpm;

Scoring saw spindle diameter: 20mm;

Scoring saw motor power: 0.75kw;

Weight: 770/900kg;

Dimension: 3250*3500*870mm

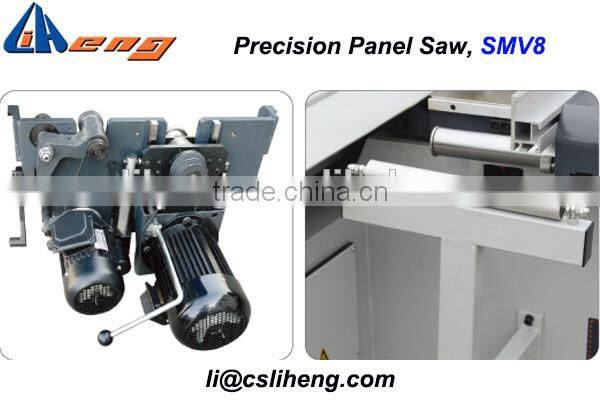

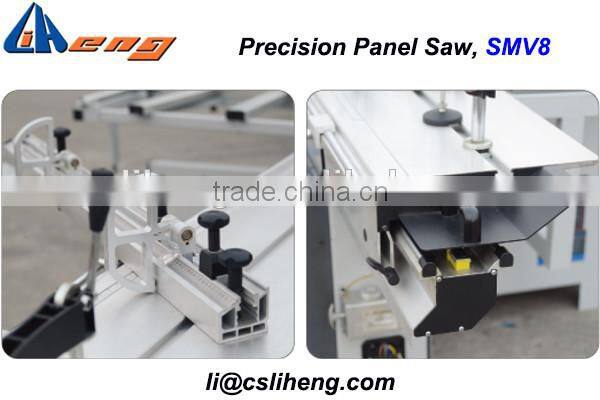

Details Picture for 3200mm 5.5kw Precision Panel Saw

1. Packing of SMV8, 3200mm 5.5kw Precision Panel Saw

2. Shipping of SMV8, 3200mm 5.5kw Precision Panel Saw

 Other series precision panel saw:

Changshu Xingliheng Wood Machinery Co.,Ltd is a profesisonal manufacturer for wood working machine from China. Xingliheng Company focus on improving production technology, machine quality and after sales service since its establishment nearly 30year ago. Up till nowadays, Xingliheng Company has shipped and installed their machine in Malaysia, Indonesia, Vietnam, Sri Lanka, Myanmar, Egypt, Ghana, Cameroon, Russian, Poland, Ukraine and Fiji etc, with very good reputations.

Xingliheng Company locates in beautiful Changshu City, Jiangsu Province, China, only 1 hour from Shanghai Hongqiao Airport and 2 hours from Pudong Airport, very good communications. Xingliheng people warmly welcome all friend visit us for sincere cooperations.

Welcome Contact Xingliheng For High Quality Precision Panel Saw:
