SL2600/3 Trustable CNC Spindless Rotary Peeling Lathe
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Other, SL2600/3 Trustable CNC Spindless Rotary Peeling Lathe | |
| Place of Origin | Jiangsu, China | Brand Name | XINGLIHENG | |
| Model Number | SL2600/3 | Voltage | 380V or else | |
| Power(W) | 29.2kw | Dimension(L*W*H) | 4650*1950*1700mm | |
| Weight | 9.5t | Certification | ISO9001/CE, ISO9001,CE | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

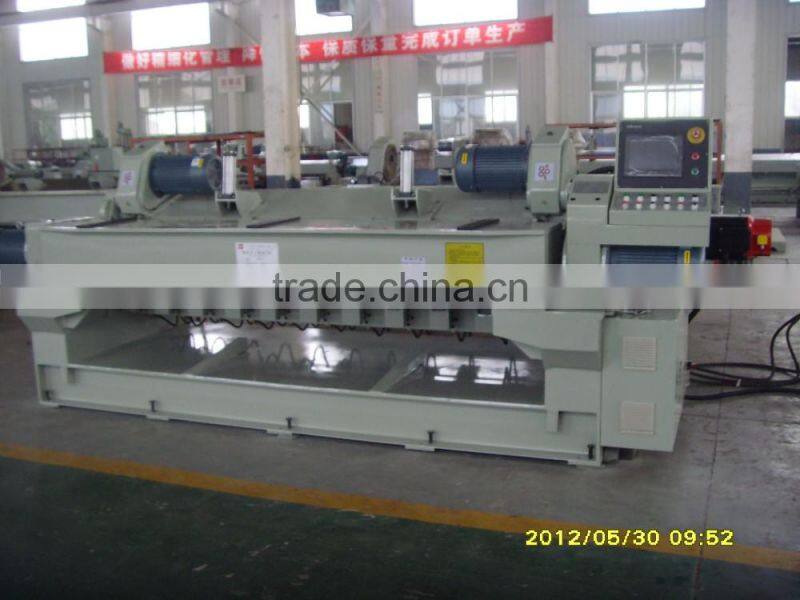

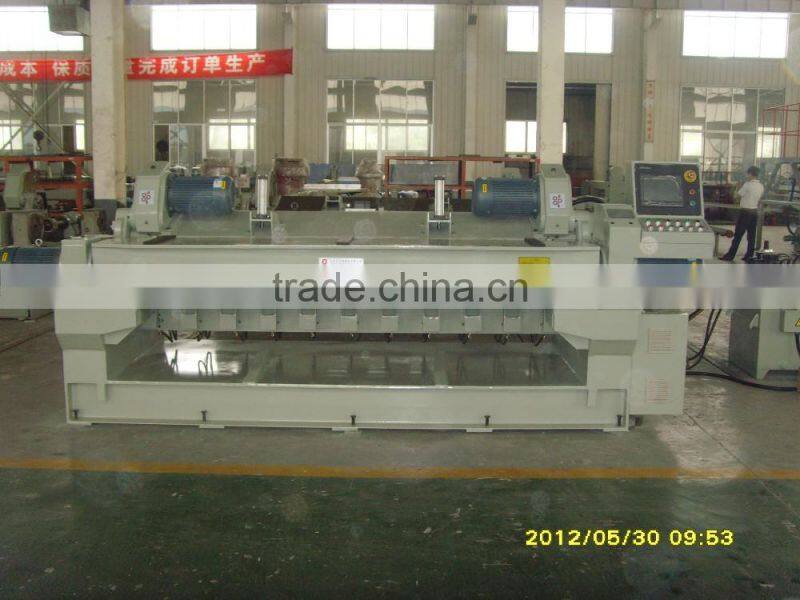

SL2600/3 Trustable CNC Spindless Rotary Peeling Lathe
Usage:
This type machine is main machine in processing plywood.It can peel diameter less than 360mm,high efficency,improve wood utilization.
Characteristics:
1.CNC Non-chuck rotary peeling lathe
2.Cutting diameter 360mm
3.Cutting length 1350-2600This machine is used to peel log without skin to core veneer and continue peeling log core after spindle peeing. It is very popular for plywood industry.
1. CNC Spindle less Veneer Peeling Lathe, with hydraulic system for knife installation which makes easy to change knife when need to grind and save time.
2. CNC control system with two servo motors, one is for controlling knife-carriage feeding which guaranteed the veneer evenness and minimized the torlerance; the other control system is for setting knife-gap, which process different thickness veneer.
3. JapaneseMitsubishi CNC system .
We have 4f,6f and 8f to meet different requirement. You can choose it according to your demand.
Technical parameters: (SL2600/3)
Max.rotary cutting length | 2600mm |
Max.rotary cutting diameter | 360mm |
| The final diameter | 40mm |
Veneer thickness | 0.8-3.0mm |
| Peeling speed | 42m/min |
| Motor | 29.2kw |
Overall sizes | 4650×1950×1700mm |
Weight kg | 9000kg |

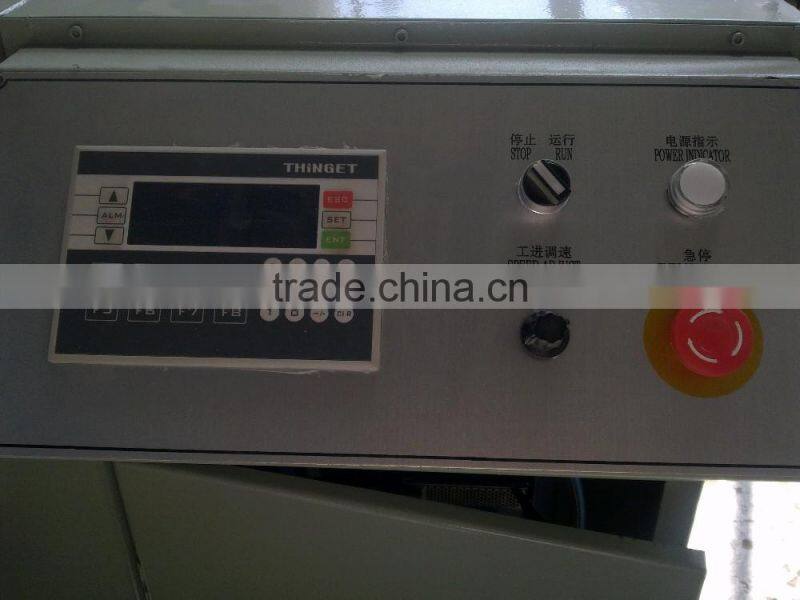

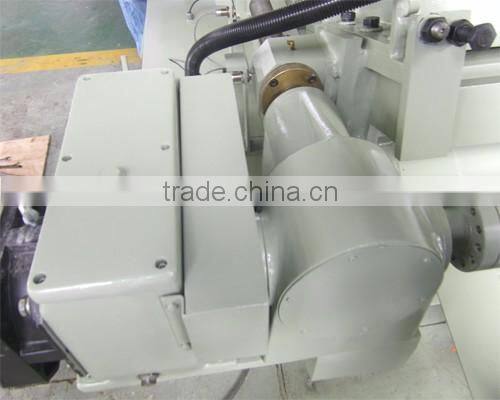

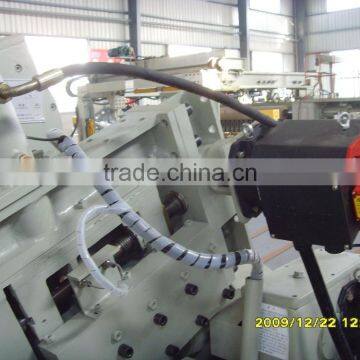

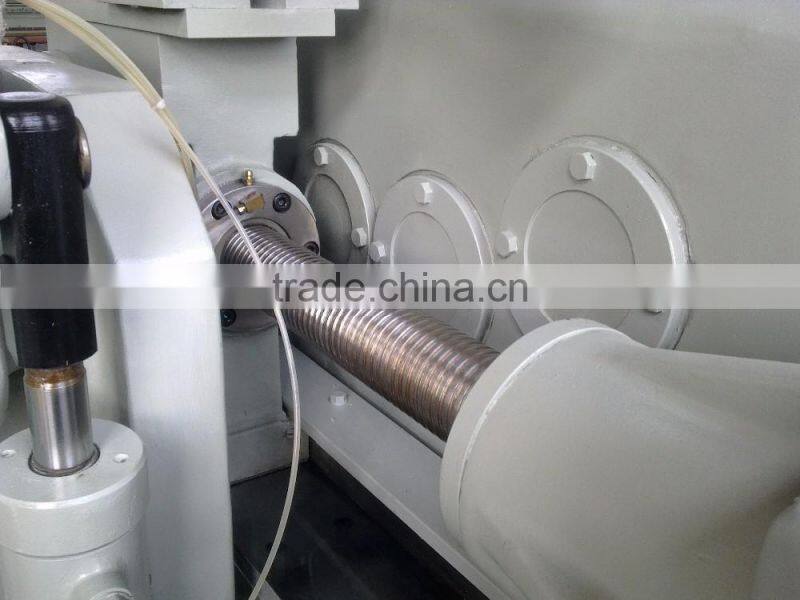

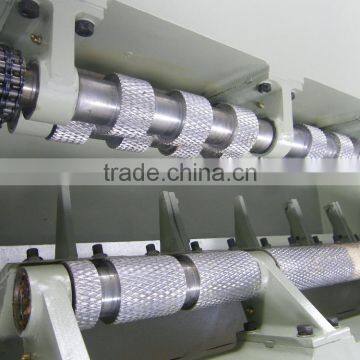

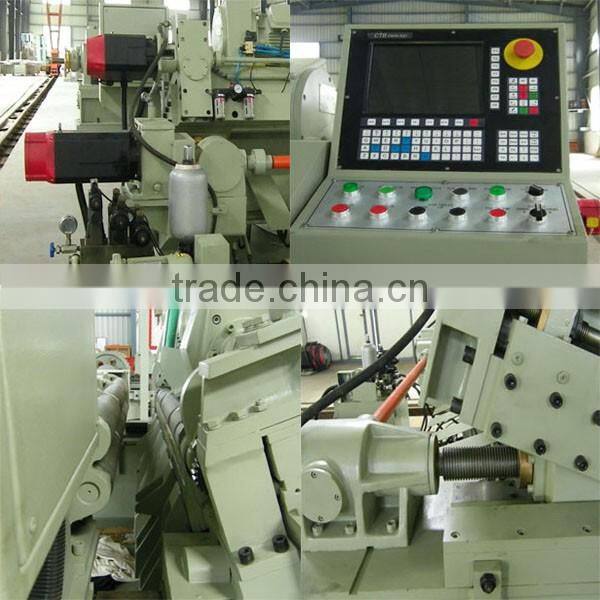

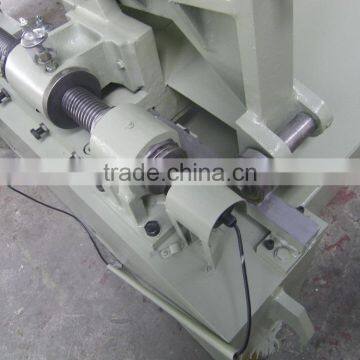

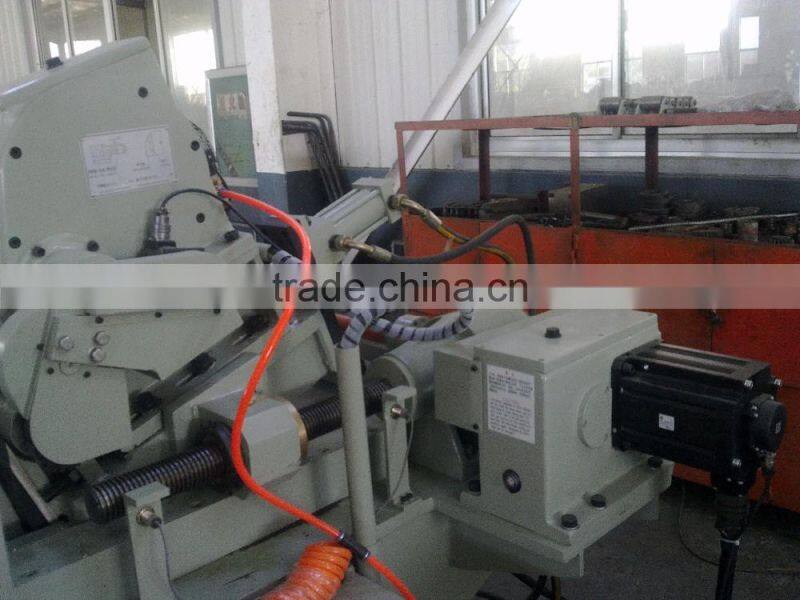

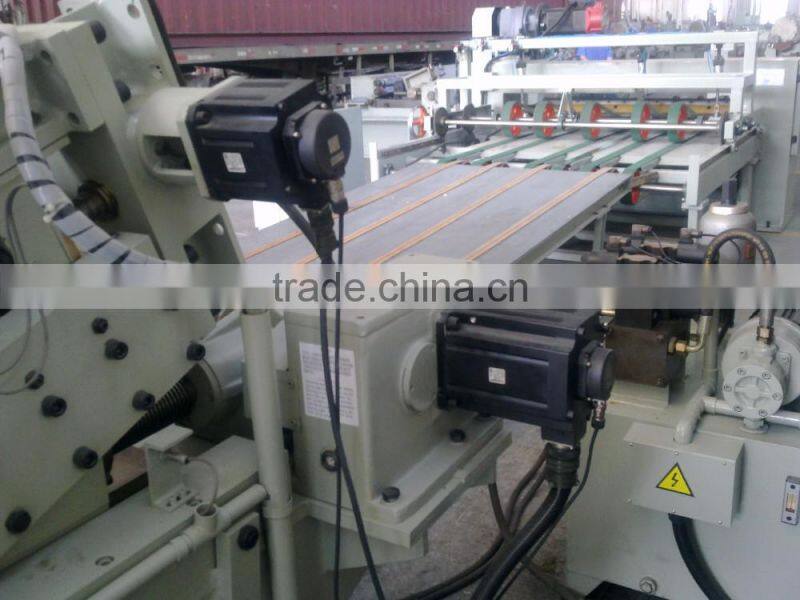

key parts

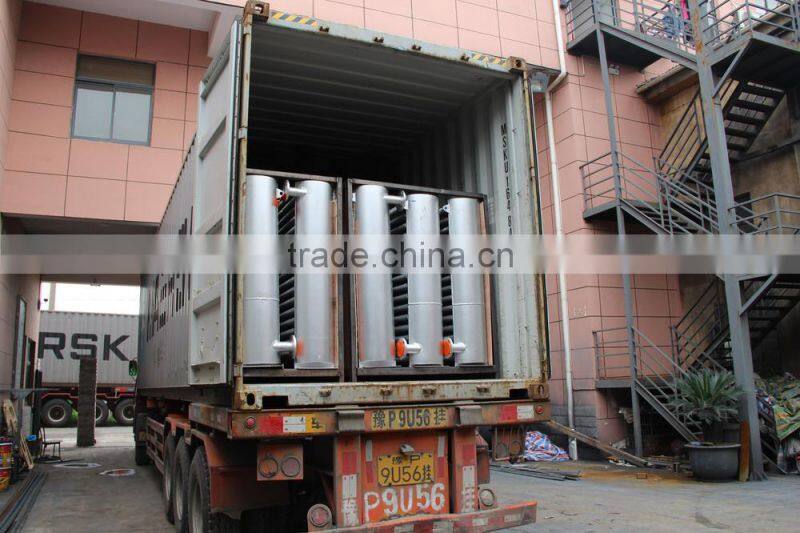

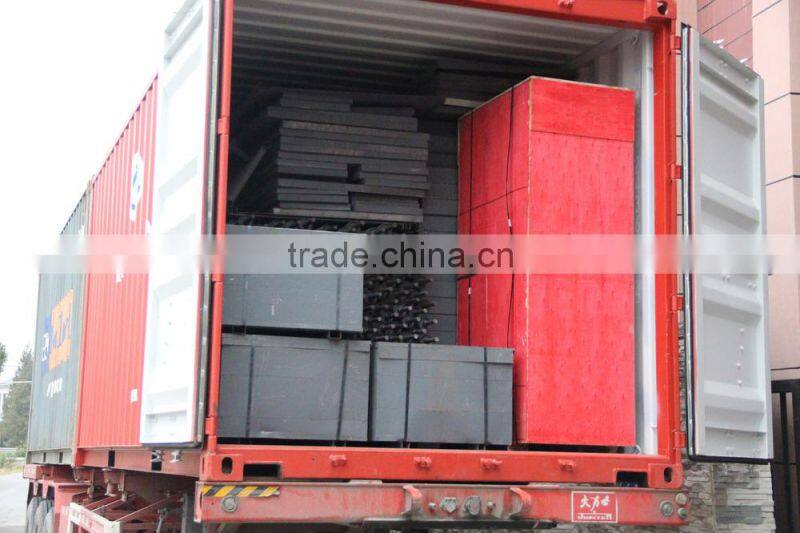

container loading in our factory
We are one of the first movers in mesh type veneer dryer machine industry in China. Clients from Indonesia, Ukraine, Poland, Ghana, Egypt, Vietnam, Sri Lanka, Fiji and so on are using our mesh type veneer dryer machine. Videos of various mesh type veneer dryer machines are available. Please feel free to contact us for more details.
