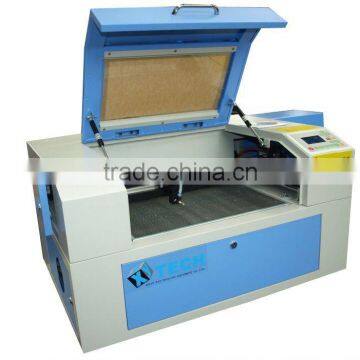

XJ3050 mini rubber stamp laser machine

FOB Price

USD $1,000 - $3,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Laser Type	CO2		Place of Origin	Shandong, China
Brand Name	XYZ-TECH		Model Number	XJ3050

mini rubber stamp laser machine
1)imported stepper motor and guide-rails
2Imported K9 reflecting lens and ANSE focus lens

XJ3050 mini rubber stamp laser machine

Application :

Any non-metal material can be processed, for example,acrylic, wood ,leather, bamboo, crystal, rubber, platic, double plate, PCB board, glass, etc

Technical parameters:

Model	Xj-3050
Engraving range	500*300mm
Laser type	Hermetic and detached CO2 laser tube
Poweer adjusting	0-100% controlling,no segment and adjusting by software
Laser tube cooling mode	Circulating-water-cooling
Machine control and drive	Speedy DSP controlling ,stepper motor
Power	40W(60W for optional)
Resolution	<0.0254mm
Setting accuracy	<0.0254mm
Repetition accuracy	<0.0254mm
Max engraving speed	2000mm/sec
Max cutting speed	400mm/sec
Min size of engravedletters	Chinese letter engraving 1.5mm,english letters engraving 0.8mm,cutting 1mm
Max cutting thickness	≤acrylic 10mm
dicate	Transmil file directly from Coreldraw ,AutoCAD etc.
Working voltage	AC220V/50Hz
Optional equipment	Rotary attachment,
	Motorized up-down table
	Special water-cooling
	Vacuum table
	Red-light position
	DSP off-line operation with usb flash
	Laser tube 60W,80w,100w
	Reflect-len
