Home > Products > CNC Router > XJ1218 cnc router italy/CNC machine with italy air spindle

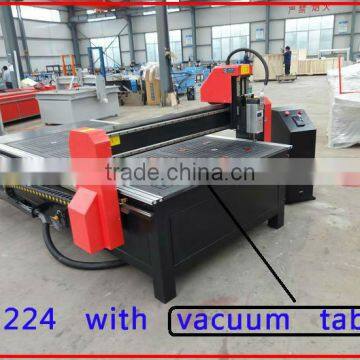

XJ1218 cnc router italy/CNC machine with italy air spindle
- Qingdao
- Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | XYZ-TECH | |
| Model Number | XJ1218 | Voltage | 220v/380v | |
| Power(W) | 2kw | Dimension(L*W*H) | 2.44*1.82*1.24m | |
| Weight | 800kg | Certification | CE&BV&ISO | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
cnc router italy/CNC machine with italy air spindleiron cast wholly working table,
solid aluminum gantry support,
imported
XJ1218 cnc router italy/CNC machine with italy air spindle
Technical specification:
Model | XJ1218 |
Working Area | 1200*1800*180mm |
Spindle Motor | 2.2kw/3kw/4.5kw Inverter-driven spindle motor cooled by water (or air for option) |
Working Mode | Stepper motor |
Control System | DSP off-line control panel with USB interface(128MB) or PCIMC control system |
Drive Mechanism | Gear-wheel on x,y axis |
Table Surface | Vacuum table o& T-slot extrusions |
Frame | wholly steel structure |
Motion Positioning Accuracy | ± 0.03/300mm |
Repositioning Accuracy | ± 0.05mm |
Max Motion Speed | 50,000mm/min |
Max Engraving Speed | 30,000mm/min |
Rotating Speed of Spindle | 2,4000rpm |
Z-axis setting | Auto Z origin tool high sensor |
Dictate Formate | G code, *.u00, *.mmg, *.plt |
Operating Voltage | 3phase 380v |
Software | Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software |
Packing Size | 3350×1950×1990mm |
Optional Parts | Dust Collecting System |
Vacuum Table with Air Pump (For XJ-1224,1325) | |
Mist Sprayer and flume | |
Rotary device with Dia80mm/100mm/200mm | |
DSP System w/Portable Control Pad (128MB) |
Applications(CE Authorized products):
a) Chest species
b) Tablet species
c) Building models
d) Signs
e) Metal
f) Wooden models
g) Embossed pictures
Other types
Model number | XJ3030 | XJ6090 | XJ1212 | XJ1218 | XJ1224 | XJ1325 |
Working range | 300*300*80mm | 600*900*80mm | 1200*1200*100mm | 1200*1800*100mm | 1200*2400*100mm | 1300*2500*200mm |
Guarantee&Aftersales service: |
guarantee for one year |
24 hour technical support by email or calling |
user friendly english manual and Video CD for manchine using and manitenacing |
Features and Specialties:
1 Iron cast wholly frame, double- screw auto eliminating ball screw, floor-type linear guide transmission.
2 High power water cooling brushless motor
3 stepper motor could enhance work efficiency.
4.break-point memory pointesfor 10 pcs, reducing material waste.
5 High compatibility, applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension characters in fancy style etc.
Applicable material:
Microlite,.natural grantie, seeing stone, bowlder, marble, rostone, glass, grass, aluminum, iron, plastic and wood etc.
Applicable industry:
a) stone
b) Tablet species
c) Building models
d) Signs
e) Metal
f) Wooden models
g) Embossed pictures
Our machine | |||
Cnc router | Laser machine | ||
Small/desktop cnc router | XJ3030 XJ3636 XJ6090 | Laser engraving machine | XJ3050 XJ6040 XJ6090 |
Advertising cnc router | XJ1212 XJ1218 XJ1224 | ||
Stone/metal processing cnc router | XJ6015 XJ1212 XJ1218 | Laser cutting machine | XJ1280 XJ1390 XJ1410 |
Woodworking cnc router | Xj1224 XJ1325 | XJ1318 XJ1325 | |
WE ALSO ACCEPT CUSTOMIZATION ,WELCOME SPECIAL REQUIEMENT | |||
offer follow speed up your progress
1.What kind of material do you want to process?
2.What is the dimension of your working material?
Based on the above analysis, we will recommend the most suitable machine and best solution for you.
Remark:
We have detailed installation and operation CD as well as full set of User's Manual in English to teach you how to install and operate the machine.
