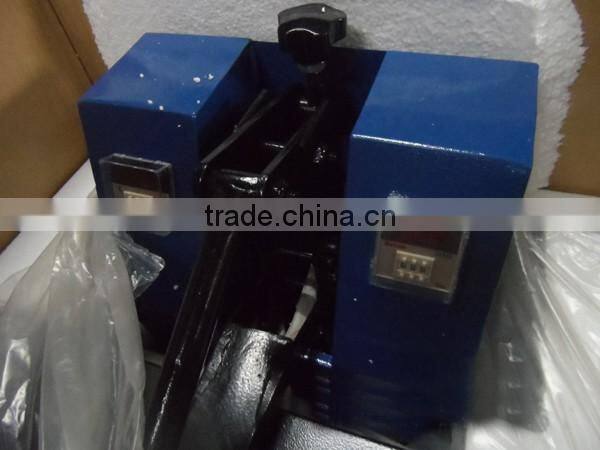

Tablet hot heat press machine 16x20
- Guangzhou
- Credit Card
You May Like
-
digital control box heat transfer press machine 16x20
-
Plate Sublimation transfer heat press machine for t shirts
-
Cheap ceramic tile heat press machine 40*50cm
-
Factory Wholesale Magnetic T shirt Heat Press Machine 40*50cm Size With High Pressure
-
38cmx38cm Tshirt Usage Semi Auto Magnetic Heat Press Machine Cheap
-
Semi-auto Magnetic High Pressure T shirt Heat Press Machine
Product Details
| Condition | New | Plate Type | Other, Heat Press Machine | |
| Place of Origin | Guangdong, China | Brand Name | DBX 3 | |
| Model Number | DBX-0056 | Usage | Other, Heat press on fabric, Garment,Sportwear etc., t shirt heat press machine | |
| Automatic Grade | Other, hand control | Voltage | 220V/110V, 220V/110V | |
| Gross Power | 2.5KW | Dimensions(L*W*H) | 81*61*44cm | |
| Weight | 35kg | Certification | CE SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Tablet hot heat press machine 16x20
1.high pressure heat press machine
2.Voltage:220V/50Hz
3.Timing Range:0-399sec.
Specifications:
Heat transfer sheets to be pressed onto all fabric surfaces, or personalised pictures or photos to be pressed to plane surfaces.

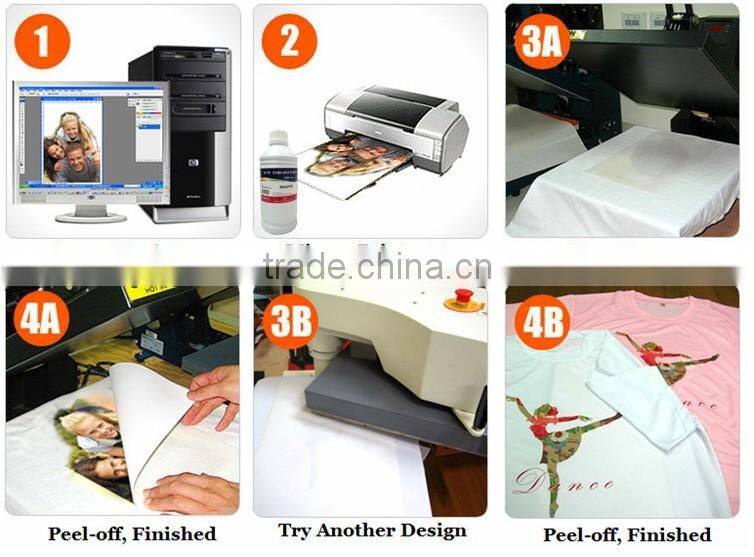

1.Printing an image on the general paper
2.Design your picture
3.Choose the right machine according to the shape of goods.
Plain Heat Press Machine:Cloth,T-shirt,hat,etc.
4.Adopt to alnico of the heat board and motherboard, so can heat up equality, level up the surface.
4.Use the machine to sublimate the ink into the good with 180~220 degrees centigrade about 10-30min.
spec:380*380mm/400*600mm/ 400*500mm etc
power:2.5KW
weight:35KG
package size: 81*61*44cm
Application:
It can imprint T-shirts, Ceramic Tiles, Mouse Pads, Jigsaw Puzzles, Fabrics & Materials, Other Misc.
1.Power Plug
2.Power Switch
3.Fuse
4.Temperature Controller
5. Timer
6.Adjust
7. Pressure Adjust
8. Heater
9.Silicon Rubber
Advantage:
1,Electronic constant temperature control.
2,Pressure adjustable, easy and convenient .
3,Basic board high temperature Silicon gel available.
4,Electronic time control: precise time set-up.
Working processing:

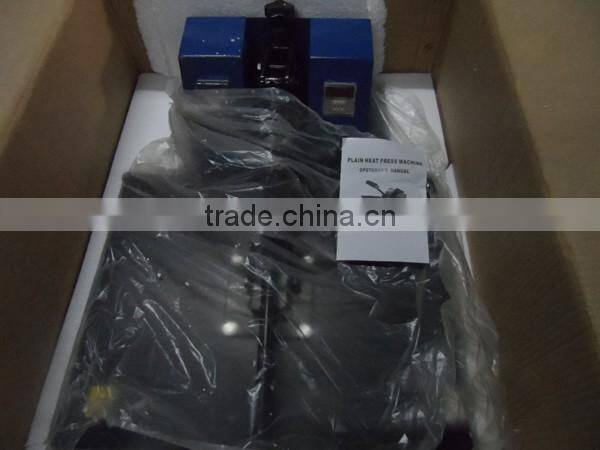

Package:
Operations:
1 Attention: proper and stable protective ground-wire must be prepared for whole machine. 1)Adjust the temperature to requested temperature, which usually between 120°C-200°C. 2) Set the timer to request time which usually between 5s-20s. 3) Put the material on the lower plate then place transfer paper (pay attention on front and back of it), Press handle till the end. |
4)Attention: Strength mustn’t exceed thirty kg to protect normal working of handle. Buzzer is working when timer indicated completion of hot-stamping, then replace the handle. 5)If cold peel thermo printing paper, erase it by brush within five to ten seconds then peel the thermo printing paper. If hot peel thermo printing paper, erase it immediately after completion of printing. Perfect thermo-printing requires the cooperation of correct time, temperature and time. |
6) Welcome the dealers the entire world to inquire our company for information about thermo-printing |
| 7)All transfer paper must be tested before mass-produce. |
Maintenance
1) Pressure: if pressure is insufficient or too strong, adjust the pressure nut."+"means pressure increase while"-"means decrease. |
| 2) Time: if the buzzer doesn’t work or continuously works when time is up, touch contact of micro-switch in after body box must be checked to see if it needs adjusting. If so, adjust it to a suitable position. |
| 3) Temperature: when temperature is up, and it will take approximately 15 minutes to reach 180°C.If heating plate doesn’t work several minutes after operation, please check the circuit. |
2. One year warranty for one machines.
3. Best technical support- avoid problems during production.
4. If you meet problems, we can offer:
5. User Manual in English.
6. Operation Video.
7. Technical Support on-line.
8. You can dispatch your technician to our factory to attend the skill training.
9. If you still can not solve the problems, we can provide door to door services,
but need your help to pay the round-trip airfare and lodging expenses.
We provide two kinds of products and services:
1. We have our own brand,currently the sales region covers 28 countries and regions around the world. We specialize in this field for more than 10 years, with the strength of market, with good quality and pretty competitive price.
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.
Why choose Elephant?
10 years in sublimation printing, Elephant accumulate rich experience, and can offer pofessional technical support at anytime on line or at your factory. At here, you can choose any product for sublimation printing, save your time.High quality and competitive price, you will earn many customers.
Contact us:
Contact Person: | Kiki |
Tel: | 86-20-85542001, 86-13711385723. 86-18102835399 |
Fax: | 86-20-85542001 |
Company: | Guangzhou Elephant Digital Technology Co,.Ltd |
Address: | 5th Floor, 15th Yongning North Street, Dashi river village, Panyu District, Guangzhou City, Guangzhou,China (Dashi MTR Station Exit D) |
If there is anything we can do for you, we shall be more than pleased to do so.
Hope we can build good cooperation with you in the future.
