Logo cutting plotter vinyl cutting plotter print and cut plotter
- 100 Piece / Pieces per Month
- guangzhou
- Credit Card
You May Like
-
4 color large format printer eco solvent printer 1.6m TFP head for sale
-
Top quality flexi 10 software plotter cutting plotter
-
S30680 large format digital sublimation inkjet textile printer for cotton
-
High quality cutting plotter machine for mimaki printer
-
Mimaki sticky print and cut machine 75cm / 107cm / 130cm / 160cm
-
2016 New products Mimaki CJV150 series print and cut plotter
Product Details
| Place of Origin | Japan | Brand Name | Graphtec | |
| Model Number | CE5000 | Voltage | 100 ~ 120 VAC,220 ~ 240 VAC,50/60 Hz | |
| Cache Capacity | 2MB | Paper Feed Width | 60cm,120cm | |
| Cutter Pressure | 20 gf to 450 gf)(38 levels) | Cutting Width | Minimum: 85mm Maximum: 1346mm | |
| Cutting Speed | 100 cm/s | Driver | digital servo | |
| Cutting Length | 5m | Repeat Cutting | cutting | |
| Size | 1487 *744 *1194 mm |
Product Description

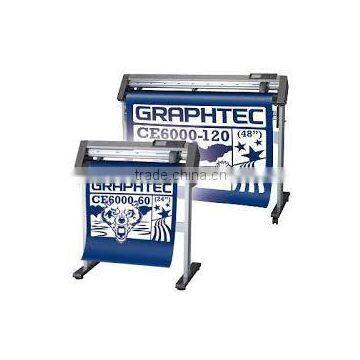

Logo cutting plotter vinyl cutting plotter print and cut plotter
brand: Graphtec
size: 40cm,60cm,120cm
cut thick: 0.25mm
function: vinyl cutting plotter
weight:40Kg for 120cm width
Compatible cutter type: Graphtec Supersteel blades, 0.9MM and 1.5mm diameter
Specifications:
| Orginal Janpan Cutting Plotter Specification | |||||||
| Item | CE6000-120 | CE6000-60 | |||||
| CPU | 32-bit CPU | ||||||
| Construction | Microgrit Rollers, Moving Media | ||||||
| Driver systerm | Digital Servo Motor | ||||||
| Max cutting size | 1213 mm × 50 m (47.7" × 164") | 603 mm × 50 m (23.7" × 164") | |||||
| Mechanical Resolution range | 1194 mm × 5 m (47" × 16.4") | 584 mm × 5 m (23" × 16.4") | |||||
| Min Media width | 85 mm (3.3") | 50 mm (2") | |||||
| Max Media width | 1346 mm (53") | 712 mm (28") | |||||
| Max media thickness | 0.25 mm (10 mil) | ||||||
| Max cutting speed | 1000 mm/s (39.4 ips)(45°direction) | 600 mm/s (24 ips)(In all directions ) | |||||
| Adjustable cutter pressure | 20 ~ 450 gf ( Points 38 level ) | 20 ~ 300 gf ( Points 31 level ) | |||||
| Minimum character matrix | Max height about 5 mm (0.2") | ||||||
| Mechanical Resolution range | 0.005 mm (0.0002") | ||||||
| Programmable resolution | GP-GLTM:0.1/0.05/0.025/0.01 mm | ||||||
| HP-GL®:0.025 mm (0.001") | |||||||
| repeatability precision*1 | 0.1 mm/2 m (0.0039"/80") or better | ||||||
| Can loading pen number | 1 pcs | ||||||
| Compatible cutter type | Graphtec Supersteel blades, 0.9MM and 1.5mm diameter | ||||||
| Compatible pen type | Graphtec water-based fibe-tip pen | ||||||
| Compatible Media | Vinyl film, Fluorescent, decal , light reflective(except high-luminosity),paint masking, banner, thermal transfer vinyl, flex, flock, ,pu,pvc image transfer media, vinyl print media, etc. | ||||||
| interface | Serial RS-232C/USB2.0 high speed ,IEEE-1284 Parallel (automatic identification) | ||||||
| Deta Buffer | 2 MB | ||||||
| Comand modes | GP-GLTM/HP-GL® (selectable in Command menu) | ||||||
| the default number of cutting parameters | 8 group, users can set any gronp. | ||||||
| display panel | 16 character* LCD screen | ||||||
| power supply input | 100 ~ 120 VAC,220 ~ 240 VAC,50/60 Hz | ||||||
| power consumption | Max 100 VA | Max 70 VA | |||||
| 10 ~ 35 °C (50 ~ 95 oF),35 ~ 75 % RH (not-condensing) | |||||||
| Recommended Resolution Environment | 16 ~ 32 °C (60 ~ 90 oF),35 ~ 70 % RH (not-condensing) | ||||||
| Dimensions W/Stand ( W*D*H) | 1487 mm × 656 mm × 1188 mm*2 (58.5" × 25.8" × 46.7")*2 | 851 mm × 285 mm × 223 mm (33.5" × 11.2" × 8.7") | |||||
| Equipment Weight W/stand | 39.1 kg (86.2 lb.)*2 | 11.2 kg (24.7 lb.) | |||||
| Accessories Including | power line | 1pc | |||||
| Quick Start Manual | 1pc | ||||||
| Safe use manual | 1pc | ||||||
| User manual disc | 1pc | ||||||
| CB09UA cutter | 1pc | ||||||
| Cutting Master software | 1pc | ||||||
| SATA | 1pc | ||||||
| PHP32-CB09N Blade Holder | 1pc | ||||||
| Windows Drivers | 1pc | ||||||
| CE5000-120 Cutter Holder | 1pc | CE5000-60 Cutter Holder | 0pc | ||||
Other details of graphtec cutting plotter:
Features:
1. Economical
2. user-friendly
3. Optimum
4. good cutting quality
5. Multi-usage: Advertising label. The control panel. Phone beauty. Mobile phone buttons. The serial number label. Clothing cutting such as thermal transfer; Heat transfer T-shirt. Souvenirs. Glass products, car stickers. Labeling. Any shape infra-red positioning, suitable for cutting
The whole processing:
Company information:
Guangzhou Elephant Digital Technology Co., Ltd. is a manufacturer of sublimation printed sportswear for all kinds of sports, including ice hockey, cycling, motor-cycling, rugby, soccer, basketball, baseball, lacrosse, paintball, weight-lifting, wrestling with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sportswear and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Our service:
1. Reply the inquiry in 24 working hours.
2.Experienced staffs answer all your questions.
3. Customized design is available.
4.Do the best quality anf cheap small wholesale heat transfer printing for fabric.
Payment terms:
T/T, Western Union, paypal
Shipping:
1.We have cooperated with Express Company, so our customers can get low freight cost.
2. If you have your own forwarder in China, we can offer Free Delivery for you in Guangzhou City!
3..There are no shipments on weekend and public holidays.
Package & delivery:
1. Neutral package or as customers' request.
2. we will arrange delivery 7-10workdays after we confirm the payment.
Contact us:
Guangzhou Elephant Digital printing Co,.Ltd
Add.: Building1,Haode Industrial Park,No.70 Xingang East Road,Haizhu District,Guangzhou,China TEL:86-20-89015371 FAX:86-020-85542001 Mobile:86-13711385723
