Portable /Hand Held Ultrasonic Spot Welding Machine
- shenzhen
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | jieda | Model Number | JD-1013 | |
| Dimensions | 253mm*312mm*120mm | Weight | 5KG | |
| Usage | ultrasonic spot welding | Voltage | AC220V | |
| Power(W) | 500W to 800W | Warranty | 1 year warranty |
Product Description
Specifications
1.Small Volume. It will take up less room.2.Japan imported Ceramic Chips
3.28KHz

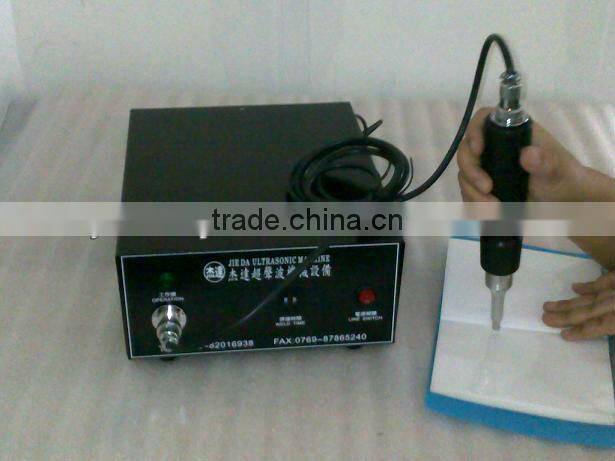

Portable /Hand held ultrasonic spot welding machine

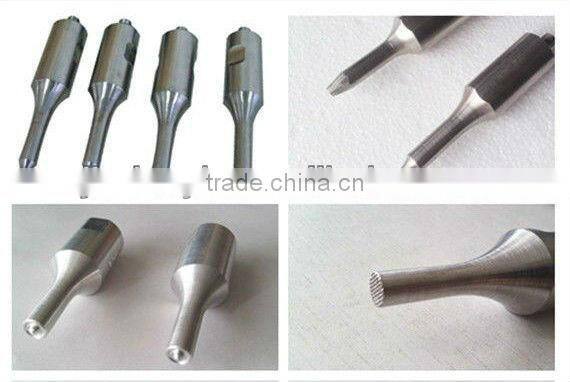

1. Working principle of Portable Ultrasonic Spot Welding Machine (1) The transducer will transfer 28KHz high-frequency electrical energy which is produced
by Ultrasonic Generator intohigh-frequency mechanical vibration which will work on plastic
products by Horn.
(2) Tens of thousands of times frication each second between one plastic product and the
other will be produced by high-frequency mechanical vibration.
(3) And then contact area between plastic products will be fused promptly and perfectly.
2. Applications:
Spot Welding, Riveting, etc of products made from plastic or metal.
3. Features:
(1) Small Volume. It will take up less room.
(2) It is easy to operate.
(3) Japan imported Ceramic Chips
(4) Frequency automatic tracking way. It is easy to be adjusted.
(5) Frequency: 28KHz
(6) Supply Power: 220V
(7) Overall Size: 253mm*312mm*120mm
