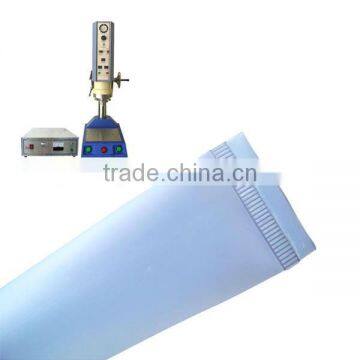

PE Soft Tube Ultrasonic Plastic Welder

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	JIEDA
Model Number	JD-2020	Voltage	AC220V
Power	2600W	Frequency	15KHz
Welding Area	can be customized	Dimensions	400660900
Weight	120kgs	Usage	ultrasonic welding
After-sales Service Provided	Engineers available to service machinery overseas

PE Soft Tube Ultrasonic Plastic Welding Machine

1. Applications:

It is used for welding and forming of PE soft tube, toys, electronics, plastic bags, etc. And it can be used on Plastic Bag Making Machine.

2. Features:

a. Efficiency and Power of the original Japanese vibrator is very high.

b. Horizontal adjustment of the horn can be accomplished soon by adjusting four Fine Adjustment

Screws.

c. It can be used for Fusion Welding, Spot Welding, Heeling-in, Riveting, Forming and Cutting.

d. Precise DIP Switch can be adjusted conveniently and precisely.

e. Automatic compensation for feedback control circuit can be used for long time.

f. It can work once we switch it on. And there is no need to preheat.

g. It can be equipped on Plastic Bag Making Machine and other Automatic Equipments to increase

production capacity.

3. Parameters:

Model	JD-1020	JD-1520	JD-2020
Output Power	1000W	1500W	2000W
Frequency	20KHz	20KHz	20KHz
Input Voltage	AC220V
Welding distance	75mm
Vibration head cooling system	Air-cooled
Oscillation system	Self-excited oscillation circuit
Output time	0.01-9.99S
Air pressure	1-7bar
Power output range	1-6 shifts
Welding Area (mm)	90	150	190
Dimensions (mm)	400×660×900
Net Weight (kgs)	110kgs	110kgs	120kgs
