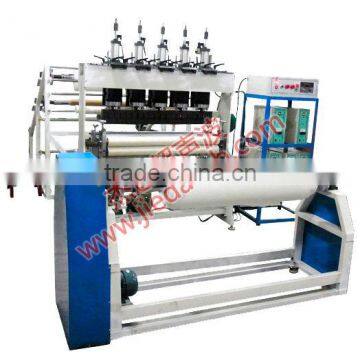

Ultrasonic Quilting,Embossing Machine

13071 Ultrasonic Quilting,Embossing Machine

Applications:

      Mattress, multicover, bedcover, bed sheet, blanket, seat cushion, winter jacket, robes, polo cases, apron, sleeping bag, show jacket, car seat cover.

Feature

1. Short welding time,ultrasonic automatic bonding,without thread and needle,more efficient and convenience,the sewing speed is more than 5 to 10 times,comparing with traditional way.the width of ultrasonic quilting machine is decided by client.
2. because of needleless,so it can avoid to leave the needle inside the product, eliminating the security of risks,It’s a new safety and environmental protection product.
3. Compare with traditional way,ultrasonic quliting is more cementation, clear embossed surface, has a more three-dimensional relief effect,more high-class and beautiful.
4. After Pinhole-free processing,it is waterproof and more warm.
5. Using roller die,easy to change,and can sew many kinds of designs.and can make any design according to client’s request.
6. This machine is fully automatic,equiped with infrared auto edge system can align layers of materials,and let all layers of material to keep in aligned state,low lose of duct is more smooth and stable.

   Technical parameter



   Mould	JD- 13071
   Frequency	20KHz
   Supply Power	220V 50KHz
   Total Power	13(KW)
   Max Width	1050mm
   Pressure Source:compressed air	(5MPA)
   Material of Frame	Steel plate connection
   Ultrasonic system	20K 1.8KW 5 sets
   Ultrasonic horn	Special steel horn
   System control	inverter adjustment
   Speed	0-18M/min
   Dimension	L5700*W3570*H6100 (others size are available)
   Weight	1200kg
   knurled wheel	Length, designs based on customers' requirements custom-made


   Samples for reference:
