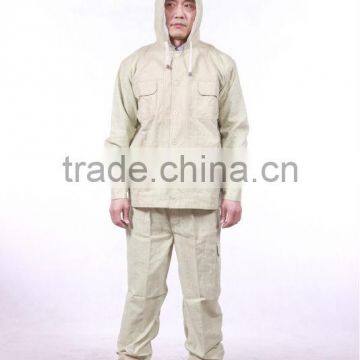

1000kv high strength shielding clothing for live working

The shielding clothing material (clothing) for the live-line working containing stainless steel fiber and high flame retardancy fiber (para-aramid and PANOX) which is researched and produced by Baoding SanYuan Textile Science & Technology Co., Ltd. is woven and manufactured by rational proportioning and special technique. The product is featured by the effective shielding to the high-voltage electric field, small resistance, permanent flame retardancy, wash-resistance, perspiration-resistance, durable use, good breathability and flexibility, and comfortable dressing.

If the operators responsible for the alternating voltage 110KV-750KV ,directs cocurrent 500KV and bleow and electrical inspection are dressed in the shielding clothing (suit) for the live-line working which is made by such clothing materials, the impact of the high-voltage electric field to the human body can be effectively shielded; in addition to this, some accidents including personal injuries by the electric spark and electric arc can also be prevented.

Main performance indices of the clothing material: Satisfying the GB6568.1-2000 National Standard

Shielding efficiency: ≥40dB

Resistance: ≤0.8Ω

Flame resistance: Carbon length ≤300mm, burned area <100cm²

Electric spark resistance: Carbonization ≤300mm

Wash-resistance: Shielding value ≥30 dB

Perspiration-resistance: R≤1Ω

Fusing current: 30A (I≥ type 5A)

Breathability: ≥35L/m²·s

Precautions for the usage: Executed according to GB6568.1-2000
