Home > Products > Weatherproof, Tape & Chemical > feeder cable clamp weatherproofing kit 7/8
feeder cable clamp weatherproofing kit 7/8
US$ 0.5 - 5
/ Piece
1 Piece(Min. Order)
- Shanghai Ningbo Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | maxdao | |
| Model Number | Gel Seal Closure |
Product Description
Hot Sale
Product Description

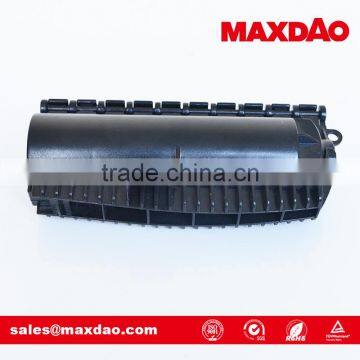

| Gel Seal Closure |
| · Optimized Gel seal closure for Antenna Coaxial Connectors(7/16 DIN or 4.3-10)-Cable(1/2 or 1/2S) |
| 1. Optimized PC+ POM with reliable mechnical performance |
| 2. Hinge structure offer durability |
| 3. Elliptical port design provide better sealing & protection |
| 4. Prominent plateform ensure 100% sealing |
| 5. Connectors' part totally warpped around by elastomers |
| Black or Gray color available |
| With or Without logo |
| PC (Polycarbonates) is engineering palstic which propertities is much better than PP or ABS, which include; Durability, hardness, abrasion resistant,Highly refractory ability and flame retardant. |
Specifications
| Waterproof | IP68 | |||
| Operating tempreture | -40 to 80°C | |||
| ICE /Freezing rain tolerance | MIL-STD-810-F:2000 | |||
| Blowing rain | IEC 60529:1989 | |||
| Low tempreture | IEC 68-2-1 | |||
| High tempreture | IEC 68-2-2 | |||
| Damp heat cycling test | IEC 68-2-30 | |||
| RoHS | 2011/65/EU | |||
Ordering Information
| Part Number | Description | Color | Neck Size Range | Connector (Nut Size) | Cable (Size range) | Dimension (LxWxH) |
| GSC-716-12-B | Gel seal closure, Antenna - jumper 7/16 DIN to 1/2" or 1/2 superfex | Black | 1.00-1.04" 25.4-26.4mm | 7/16 DIN (30-32mm) | 1/2" or 1/2"S (13.5-16mm) | 145x66x43mm |
| GSC-716-12-G | Gel seal closure, Antenna - jumper 7/16 DIN to 1/2" or 1/2 superfex | Gray | 1.00-1.04" 25.4-26.4mm | 7/16 DIN (30-32mm) | 1/2" or 1/2"S (13.5-16mm) | 145x66x43mm |
| GSC-4310-12-B | Gel seal closure, Antenna - jumper 4.3-10 to 1/2" or 1/2 superfex | Black | 0.68-0.80" 17.3-20.32mm | 4.3-10 (24-26mm) | 1/2" or 1/2"S (13.5-16mm) | 120x50x30mm |
| GSC-4310-12-G | Gel seal closure, Antenna - jumper 4.3-10 to 1/2" or 1/2 superfex | Gray | 0.68-0.80" 17.3-20.32mm | 4.3-10 (24-26mm) | 1/2" or 1/2"S (13.5-16mm) | 120x50x30mm |
Performance Test
Trade Assurance
Trade Information
| Trade terms | CIF, DDU, EX-WORKS |
| Payment terms | T/T, L/C, Negotiable |
| MOQ | 1 |
| Supply capability | 10000 pieces per month |
| Lead time | 3-15 days |
| Shipment | Sea, Air, Express |
| Port | Shanghai, Ningbo, Shenzhen |
| Sample availability | Yes |
| Sample time | 3-5 days |
| Packaging | Plastic bag, Carton, Pallet |
