Home > Products > FOTON TRUCK AND PARTS > Hotsale 8x4 FOTON Dumper Truck

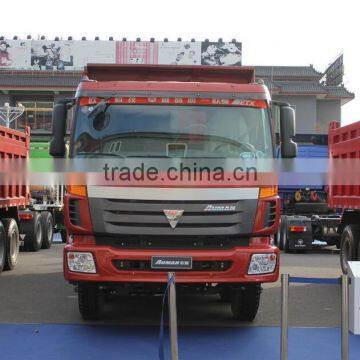

Hotsale 8x4 FOTON Dumper Truck
- 300 Set / Sets per Month
- any China port
- T/T
You May Like
Product Details
| Drive Wheel | 8x4 | Capacity (Load) | 31 - 40t | |
| Horsepower | 351 - 450hp | Condition | New | |
| Transmission Type | Manual | Emission Standard | Euro 2 | |
| Fuel Type | Diesel | |||
| Gross Vehicle Weight | 31000 | Place of Origin | Beijing, China | |
| Brand Name | FOTON | Model Number | BJ3313DRPKJ-6 | |
| Dimensions (L x W x H) (mm) | 10380*2495*3400 |
Product Description
| Work conditions | Standard type |
| Vehicle model | BJ3313DRPKJ-6 |
| Wheelbase (mm) | 1800+4700+1350 |
| long(mm) | 10440 |
| width(mm) | 2495 |
| height(mm) | 3400 |
| long(mm) of the cargo body | 7600 /7400 |
| width(mm) the cargo body | 2300 |
| height(mm) the cargo body | 1500 /1200 |
| Tread (front)(mm) | 2005 |
| Tread (rear) (mm) | 1865 |
| Minimum ground clearance(mm) | 314 |
| Chassis curb weight(kg) | 10600 |
| Design load mass(kg) | 15305 |
| GVW(design)(kg) | 31000 |
| GVW(actual range)(t) | 31-60 |
| Maximum speed (km/h) | 77 |
| Maximum climbing capacity, % (full load) | 30 |
| Body type | VT-2490 flat roof |
| Carrying number | 3 |
| Engine Model | WP12.380E32 |
| Engine Type | In-line,six-cylinder, water cooling, four-stroke, DI, turbocharging, intercooling, diesel engine. |
| Displacement (L) | 9.726 |
| Max power (ps/rpm) | 380(2200) 0(2200) |
| Max torque (Nm/rpm) | 1250(1400) |
| Engine Brand | WEI CHAI |
| Emission | Euro Ⅱ |
| Clutch Type | Single, dry type diaphragm spring |
| Plate diameter | φ430 |
| Gearbox Model | 12JSD180(PTO) |
| Gearbox Brand | FAST |
| Service brake | Dual circuits pneumatic brake |
| Parking brake | Energy-accumulating spring air cut-off brake |
| Auxiliary brake | The engine exhaust brake |
| Front suspension/leaf spring number | longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar/13/14 |
| Rear suspension/leaf spring number | Main and auxiliary leaf springs with dual acting telescopic shock absorber and anti-roll bar/12 |
| Front axle Rated load | 7.5T |
| Front axle Brake type | Drum brakes |
| Rear axle Model | 13T double reduction |
| Axle housing type | Casting axle |
| Rated load/gear ratio | 13T/5.73 |
| Rear axle Brake type | Drum brakes |
| Rear axle Model | 12.00-20 |
| Rear axle Quantity | 10+1 |
| External width (mm) | 865 |
| Stringer cross section (mm) | 243/320X90X(8+7) |
| Steering Gear Model | JL80Z |
| Fuel tank Cubage and material | 380L Iron |
| Rated voltage | 24V |
| Battery | 2x12V-165Ah |
1.Packing:nude and roro ship.
2.Shipping:30-45 days after receiving your payment.
We can supply you best services as follows:
1.Good package with quick delivery time.
3.Best after sales service.
4Long service life.
Our company is specialize in SINOTRUK HOWO TRUCKS and FOTON TRUCKS,like TRACTOR TRUCKS,DUMP(TIPPER) TRUCKS,WATERINGTRUCKS,OIL TANKERAND OTHER SPECIAL TRUCKS.DEAL WITH CHINESE BRAND TRUCK SPARE PARTS, ALSO DEAL WITH CONSTRUCTION MACHINERY&PARTS.
What’s more,we are specialize in complete trucks,as well as light trucks together with all the original good quality spare parts for HOWO and other series trucks,We sell to various military transporting troops,oil and gas transparting troops,coal transporting troops and engineering teams at home and abroad.
.
IF YOU ARE INTERESTED IN OUR PRODUCTS,PLEASE FEEL FREE TO CONTACT ME.
Contact Person:Monica Lv
Skype: monica99578
Tel:+86 15853196819
