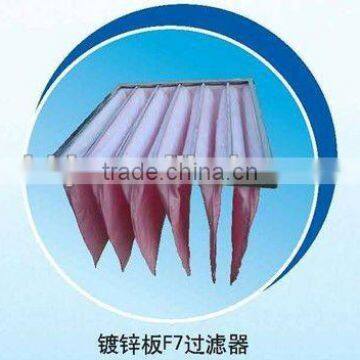

F7 Pocket Filterf 7 Air Filter

FOB Price

US$ 1 - 3 / Set

100 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

f7 air filter larger air volume
competitive price
for HVAC systems.for AHU,ACU etc..

Frame: galvanized steel or extruded aluminum

Filter media: progressively structured synthetic fiber

Gasket: no

EN 779 class: F5-F9

Average arrestance: 95-98%

Maximum air flow rate: 125% of nominal air flow rate

Max. operating temperature: 80^OC

Max. relative humidity: 100% RH

Special sizes: on request

DIN3438-F1 and UL900-class 1

high dusting hold,high efficiency ,low pressure drop, efficiently delete mirco duct((≥3.0~5.0μm)

ultrasonically-welded pocket configuration that guarantees complete pocket inflation and eliminates crowding or leakage.

parameter

.........................................................................................................................

model	Outside Dimensions	Rated air flow	Initial resistance	Efficiency (class)	filter color	pockets
XN-ZXD-13	495×295×600mm 20″×12″×24″	1300m3/h	50Pa F5 55Pa F6 60Pa F7 65Pa F8	40-50% F5 60-70% F6 75-85% F7 85-95% F8 colorimetric	F5 White F6 Green F7 pink F8 light yellow	5
XN-ZXD-22	495×495×600mm 20″×20″×24″	2200m³/h				5
XN-ZXD-16	595×295×600mm 24″×12″×24″	1600m³/h				6
XN-ZXD-27	595×495×600mm 24″×20″×24″	2700m³/h				6
XN-ZXD-32	595×595×600mm 24″×24″×24″	3200m³/h				8

Shandong Aobo Environmental Protection Technology Co., Ltd.: Contact nameJudy Lu
Chat Now; Phone86-534-5011761; AddressWUCHENG ECONOMIC DEVELOPMENT ZONE, Dezhou, Shandong
