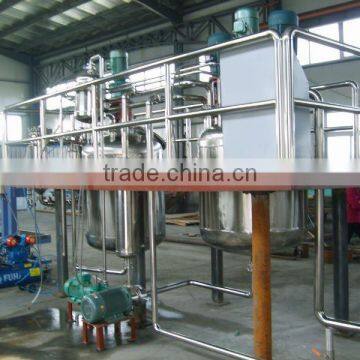

Water-based Paint Production line

 Introduction.

1.This product is suitable for industrial mass production of complete sets of equipment.

2, The equipment can independently accomplish the vacuum feeding, dispersion, grinding, filtering and semi-automatic filling the entire industrial process.

3, Design of products can be customized according to the scale of production, realize the automation process control the equipment, saving space and staff, convenient management.

Main Features.

1) It applies to small, middle, large scale production, output from 1000-50,000 ton one year

2) The material which contact with the product is stainles steel, ss304 or 316L

3) The vessel is mirror plolished outside and inside, which make the vessle easy to clean and will

    not have residual, with different thickness for different volume.

4) Configuration: according to different output and the particle size you need, we will equip with

    high speed disperser, Bead Mill and paint color agitator, filter and automatic filling machine.

5) Installation: Our professional technician will come to your factory to instal the whole system.

6) Debug: After installation, we in charge of debug.

7) Training: Our engineer will train your workman about the operation and attention matters.

8) Maintenance: We have a strong service term, our engineer will solve your problem as earlier as possible

 Main Process

1). put the material to the 5000L reactor kettle,start heating ,when the temperature reach about 100 degrees,it will produc gases,and the gas will into the separation column.

2). after part be cooled by the separation column, the rest gas into horizontal condenser,then condenser will cooling the gas ,after all the water and gas will into the catchment device.

3). the catchment device,will separate material back to reactor kettle,and exclude the water.(the process may be last about fifteen to twenty hours)
4). during the reaction process,in order to improve the speed, can extracting vacuum,when reach the suitable time, sampling, assay viscosity,if meet the requiment, then cooling.
5). when the temperature reach 130 degrees,put the raw materials to dilute kettle,and add Xylene (this kind of material) to dilute kettle,

 Technical Parameter

Noto:

The set includes 9 sub-systems:

1) Vacuum material adding system,

2) Pressure discharging and filtration system,

3) Slurry producing system,

4) Painting mixing system,

5) Cooling system,

6) Piping system,

7) Electrical control system,

8) Operation platform;

9) Packaging system

1. Rapid response to your inquiry in 8 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. Small orders, OEM & ODM are welcome.

4. Special discount and protection of sales area provided to our distributor.

5. Illustrated inspection report shall be provided before shipment.

6..We can also provide painting formulation if you need.
