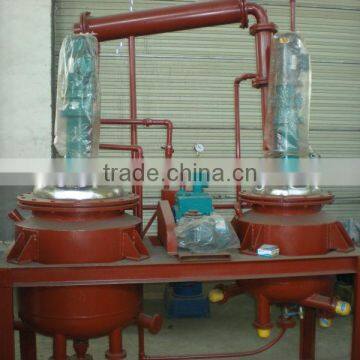

Unsaturated polyester resin reactor for lab pilot production

Specifications

 Unsaturated polyester resin reactor for lab pilot production

 Lab Type Components:

1.50L Electric Heating Reactor   1 Set

2.100L Dilute Kettle                    1 Set

Material of 304 Stainless steel

 The complete production process:

1.       put the material to the reactor kettle,start heating ,when the temperature reach about 100 degrees,it will produce gases,and the gas will into the separation column.

2.        after part be cooling by the separation column, the rest gas into horizontal condenser,then condenser will cooling the gas ,after cooling into the catchment device.

3.        part of material and water in the catchment device, separate material to reactor kettle,and exclude the water.(the process may be last about fifteen to twenty hours)

4.       during the reaction process,in order to speed up, can extracting vacuum,when reach the time sampling, assay viscosity,if complify the requiment then cooling.

when the temperature reach 130 degrees,hit the raw materials to dilute kettle,and put material to dilute kettle, diluting , cooling ,then make the prodction you need.

Here we produce this polyester resin making machines from 50L lab small plant to 10tons mass production lines,

we have already successfully sent our engineers to help with installation in Saudi Arabia, Thailand, Iran, etc,

If any interest, pls contact:

  Ms. Anna Miller/ Sales Manager

Mobile: 0086-13012946572

Laizhou Yuanda Chemical Industry Machinery Factory (Solid Factory)
