CE Certificate t Bar Suspend Ceiling( Manufacturer)

Description

Length(mm)

width(mm)

height(mm)

thickness(mm)

Main tee

32H

3600/3660/3750

24

32

0.23-0.32

Mid   Cross tee

1200/1220/1250

24

32

0.23-0.32

Short Cross tee

600/610/625

24

32

0.23-0.32

Wall angle

3000 or 3600

22-30

22-30

0.23-0.51

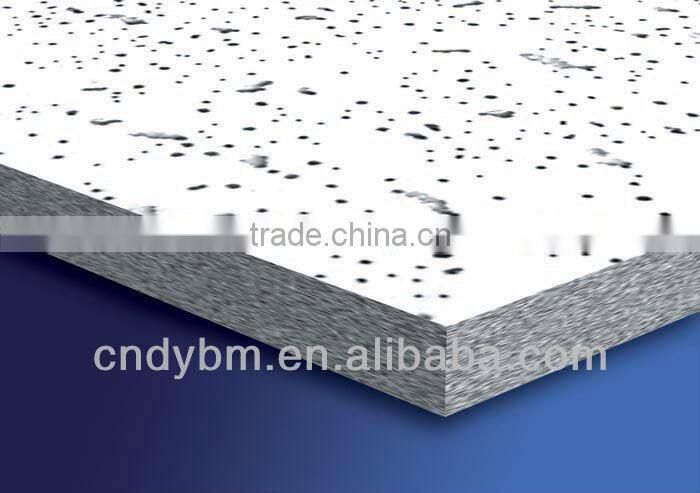

Ceiling panels material

Wet Formed mineral fiber

Ceiling panels surface

Factory Applied Vinyl Latex Paint

Noise reduction coefficient

NRC 0.55

Humidity Resistance(RH)

>=80%

Light reflectivity

>=85%

Fire Performance

non-combustible,reach class A according to GB8624-1997

Moisture resistant

standard board quality (12mm,14mm)

according to JC/T670-2005

Environmental protection

no asbestos,formaldehyde content<0.1mg/L

Acoustical performance

comply with the requirements of JC/T670-2005

Ceiling panels colour

white

Ceiling tiles density

280-320kgs/m3

Ceiling panels size

300x600mm, 300 x 1200mm, 600x600mm,600x1200mm etc

Ceiling tiles edge finish

square edge, tegular edge, adhesive and nails edge, concealed edge,

shiplap edge, and liner shiplap edge.

Ceiling panels thickness

9mm ,10mm,11mm,12mm, 14mm, 15mm, 16mm,18mm, 20mm etc.

Ceiling panels feature

Sound absorbing,Resistance to fire, warm-keeping, energy-saving, heat-insulating

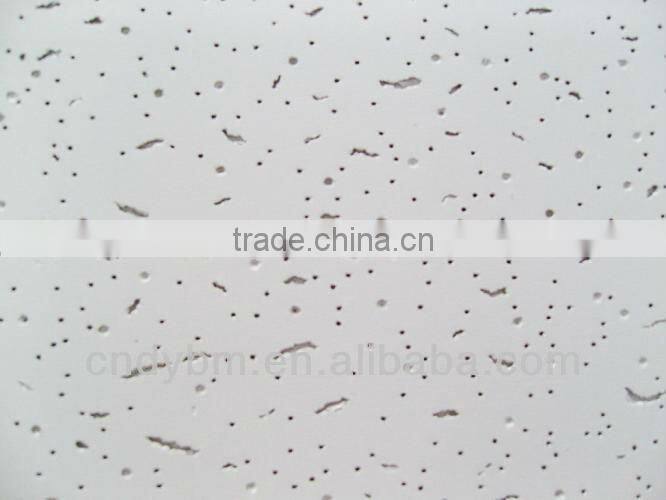

Ceiling panels pattern

Pine holes,Little-Stars,LovelyWorms,Sand Surface

and other special designs, Also according to your requirement
