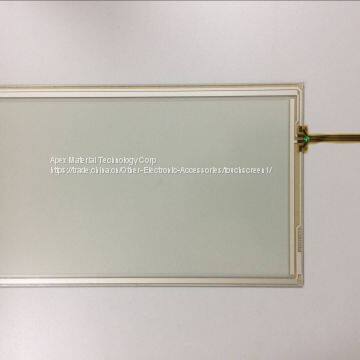

AMT 3-32 inch touch screens

FOB Price

USD $10 - $15 / Piece

50 Pieces(Min.Order)

Port SHANGHAI
Payment TermsT/T Other
Delivery Detail1 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AMT	Place of Origin	China
Model Number	9545	Type	Resistive
Screen Size	15"	Interface Type	Serial, USB
Products Status	Stock	Resolution	1024 x 768

Product Description

AMT has been a leading manufacturer in the field of resistive touch products for over a decade. We hold our products to the highest standard and offer comprehensive before and after-sales services. All our advanced resistive touchscreens are fully supported by PenMount controllers and drivers. AMT is committed to developing resistive touchscreens with advanced features that will continue to lead the market.

In addition to our standard 4-5-8-wire resistive touch panels, AMT has developed several value-added resistive touch products to meet the needs of various applications and specifications. For instance, Low-reflective (LR) touch panels can be used with LCDs to significantly reduce reflectivity, making them a favored choice for outdoor systems that are exposed to direct sunlight. Glass-Film-Glass (GFG) touch panels possess an added layer of thin glass or HD (Heavy Duty) film on the touch surface. The high surface hardness conferred by this addition not only makes GFG products resistant to scratches, chemicals, and high temperatures, but also easy to clean. GFG products are therefore suited for industrial, medical, or food equipment, and other products which need to operate in harsh environments such as transportation. Increasingly, many new touch products have opted for a bezel-free design. AMT has developed a line of true-flat resistive touch panels to meet the needs of this trend.

In this section, we will introduce AMT resistive touch panels and PenMount resistive touch controllers

Advanced Resistive

In addition to standard 4-, 5- and 8-wire resistive touch screens, AMT has successfully developed the following advanced resistive touch screens:

Low Reflective Touch Screen: The reflectivity of this touch screen is minimized to 1.5% which allows system developers to integrate this panel for outdoor use without rectifying the LCD. 4-, 5- and 8-wire designs are available for this product.
High Light Transmission Touch Screen: This touch screen provides users with the best light transmission rate so the clarity of pictures on the LCD will not be distorted. With a light transmission rate as high as 85%, High Light Transmission touch screens will greatly increase the visibility of your product.
Glass-Film-Glass Touch Screen: This touch screen is designed with an anti-scratch touch surface, by using two types of materials, either thin glass or HD film as the touch surface, surface hardness can reach 9H or higher than 5 Mohs and is further enhanced with delicate touch control, high temperature resistance, and excellent waterproofing. In addition, GFG touch screen structure combines well with low-reflective touch screens.
Touch Window: A “true flat” frameless touch screen that confers a stylish outline to your product. A décor layer is printed on the top of the touch panel.
Framed Touch: A variation of Touch Window with Film-Glass construction and featuring a smoothed outline.
Mullti-Finger Touch Screen: A maximum of 12 touches can be detected simultaneously. Various sizes available from 3” to 22”.
