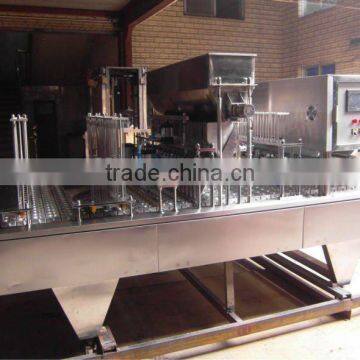

Automatic Coffee Cup Filling Machine(for NESPRESSO, Kcup, all capsules)

Automatic Coffee Cup Filling Machine ,also called coffee capsule filling and sealing machine.

(for NESPRESSO, Kcup, all capsules)

Model: CP series

Brief introduction of Coffee Cup/capsule Filling Machines:

CP series coffee capsule/cup filling and sealing machine is used for coffee capsules/cups filling with coffee powders(or other kinds of powder products like tea powder , cocoa powder etc. )

It is our patent machine specially designed for fill small coffee capsule cups.

we have successful experience design and manufacture for all kinds of coffee capsules : very small cups, the special filling part for the fluffy coffee powder, and press function to ensure all fluffy powder into the cup/capsule container. also some complicated methods as for the plastic filter layer before fill the powder and even filter paper layer after fill powder , to cover the powder top.

we have over 2 years xperience in this machine and exported over 50 machines to USA, Israel , Middle East , South America etc.

Working process of  coffee cup/capsule filling machine:

auto feed coffee capsules/cups onto machine

→ auto feed inner filter layer before fill powder

→ auto sorting function for the out pack and inner filter layer

→ auto fill coffee powder as precise weight 3g, 5g, 10g etc → auto sealing

→ press the powder to ensure totally into cup/capsule

→ feed the filter paper/layer cover the coffee powder

→ auto feed foil and twice heat seal .

→ automatic output final capsule/cup

Technical parameters of coffee cup/capsule filling machine :

CAPCITY: 1500-12,000pcs/hour

Film Width: 370mm

Filling volume: 0~350ml (depends on customer needs)

suggested seal by foil according to our experience

Voltage: 380V, 50Hz, 3phase(or 220 V)

Powder: 1.1kw-5kw

Air pressure: 0.5~0.75Mpa

Max air consumption: 0.45m3/m

Machine dimension: 4200×750×1800mm

Weight: About 1600kg(depends on capacity speed of yours)

customized design also available!

sealing foil and all kinds of empty cups/capsules all available

give you one stop total solution service!
