Granule Packaging Machinery
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Commodity, Food, Other, Medical, Commodity, Food, Machinery & Hardware, Medical | |
| Packaging Type | Film, Pouch, Stand-up Pouch | Packaging Material | Other, film | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380v | Power | 5kw | |
| Place of Origin | Jiangsu, China | Brand Name | Haitel | |
| Model Number | HTL-D420 | Weight | 900KG | |
| Certification | CE, ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HTL-D420 Full Automatic Granule
Auger Vertical Packaging Machinery

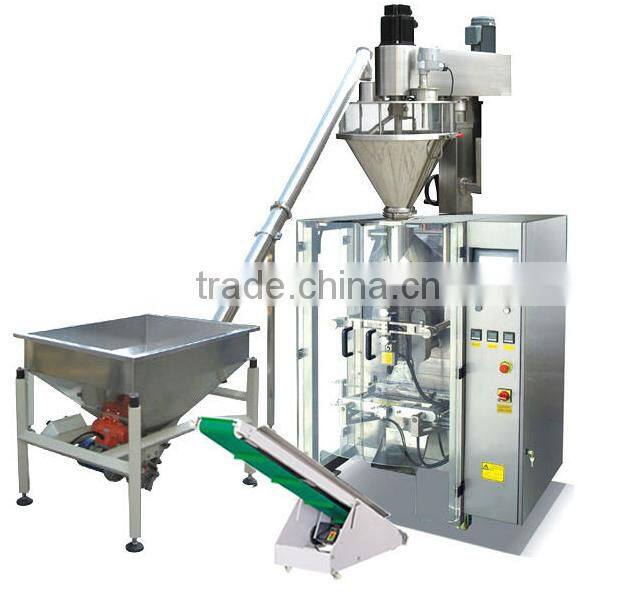

1. Machine Picture
2. Characteristics:
1. Film drawing down system controlled by servo motor.
2. Automatic film rectifying deviation function.
3. Various alarm system to reduce waste.
4. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
5. The way of bag making: The machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.
3. Application:
It is suitable for packing of several of granule, powder, such as sugar, salt, coffee, etc.
4. Main technical parameters:
Model | HTL-D420 |
Packing speed | About 30-60 bags/min. It is according to quality of wrapping film and materials. |
Accuracy | ≤1.5% |
Bag size | (L) 80-300 mm; (W)80-180 mm |
Maximum film width | 420 mm |
Filling range | 50-1000 g |
Film thickness | 0.04-0.09 mm |
Packing material | Thermal composite materials, such as BOPP/CPP, PET/AL/PE |
Air consumption | 0.8 MPa, 0.4 m³/min |
Total power | 5 KW |
Voltage (V) | Four wires, three phases, 380V, 50Hz. |
Air compressor | Not less than 1 CBM |

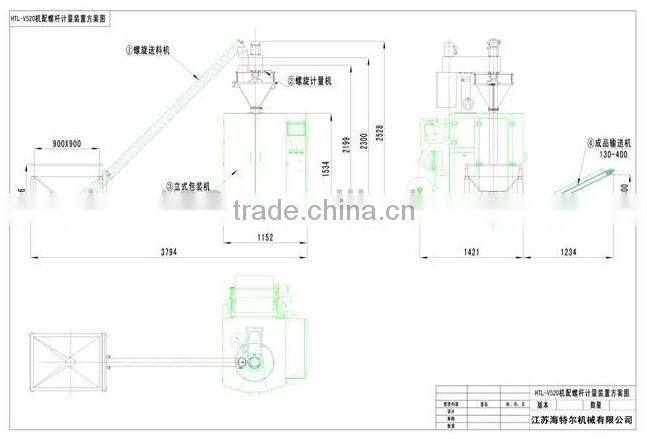

Total height | 2528 mm |
Gross weight | 900 kg |
5. Electric configuration:
1 | Touch-sensitive screen | WEINVIEW Taiwan | color screen |
2 | Programmer controlled system | SIEMENS Germany |
|
3 | Servo motor | PANASONIC Japan |
|
4 | Servo driver |
| |
5 | Cylinder | SMC Japan |
|
6 | Cylinder | SMC Japan |
|
7 | Electromagnetic valve | JINGQI Taiwan |
|
8 | Intermediate relay | Weidmuller Germany |
|
9 | Photoelectric eye | BEDELI Taiwan |
|
10 | Powder | ZHANGXIN China |
|
11 | Solid state relay | XIANLI / OMRON |
|
12 | Thermometer control | OMRON |
|

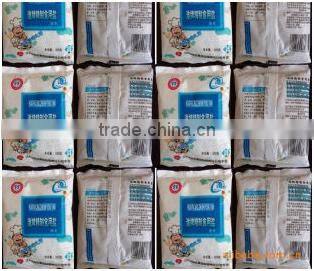

6. Packing Product samples:
