Xinyuan Hardware Galvanized Wire Iron Wire Cutting Wire
- Tianjin Xingang
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | XinYuan | |
| Model Number | XY-Wire | Surface Treatment | Galvanized | |
| Galvanized Technique | Electro Galvanized | Type | Loop Tie Wire | |
| Function | Binding Wire | Wire Gauge | 16#~24# |
Product Description
Specifications
Factory Galvanized wire iron wire&cutting wire1.wire gauge size:8#-22#
2.zinc coating:15-35gsm
il weight:50-100kg/

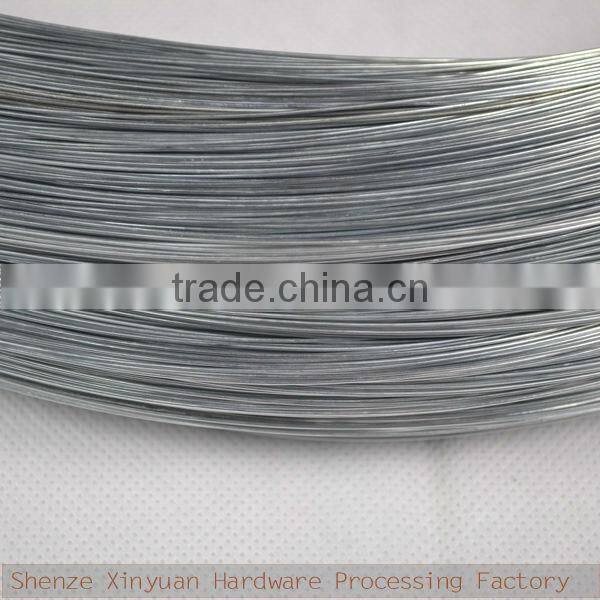

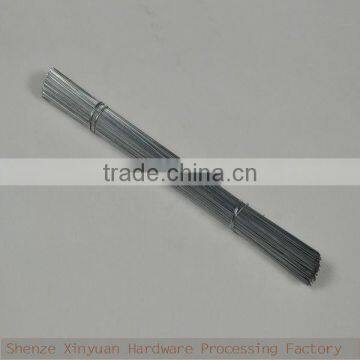

Xinyuan Hardware Galvanized wire iron wire cutting wire
Galvanized iron wire uses in weaving of wire mesh, fencing for expressway and construction.
Thick zinc-coating layer,uper in corrosion resistance
1.Materials: (a). Mild steel wire (b). bullet wire (c). high-carbon steel wire.
2.Wire gauge size: BWG8# 14# 16# 18# 20# 21# 22#
3.Processing :
First draw (the material of wire rod to the right wire diameter0---Wire Annealing---Rust Removing--- Acid Washing--- Boiling--- Drying--- Zinc Feeding--- Wire Coiling.
4.Zinc coating: 8-15g/mm2 electro galvanized, 30-70g/mm2 hot dip galvanized, 100-500g/mm2 heavy duty galvanized zinc coat.
5.Elongation: 10-15% for low carbon steel wire
6.Tensile strength: 350-550n/mm2 soft, 550-950n/mm2 hard drawn, 1000-2600n/mm2 high tensile strength.
8.Common specifications of galvanized wire:
Wire Gauge | SWG in mm | BWG in mm | In Metric System mm |
8# | 4.06 | 4.19 | 4.00 |
9# | 3.66 | 3.76 | - |
10# | 3.25 | 3.40 | 3.50 |
11# | 2.95 | 3.05 | 3.00 |
12# | 2.64 | 2.77 | 2.80 |
13# | 2.34 | 2.41 | 2.50 |
14# | 2.03 | 2.11 | - |
15# | 1.83 | 1.83 | 1.80 |
16# | 1.63 | 1.65 | 1.65 |
17# | 1.42 | 1.47 | 1.40 |
18# | 1.22 | 1.25 | 1.20 |
19# | 1.02 | 1.07 | 1.00 |
20# | 0.91 | 0.89 | 0.90 |
21# | 0.81 | 0.813 | 0.80 |
22# | 0.71 | 0.711 | 0.70 |

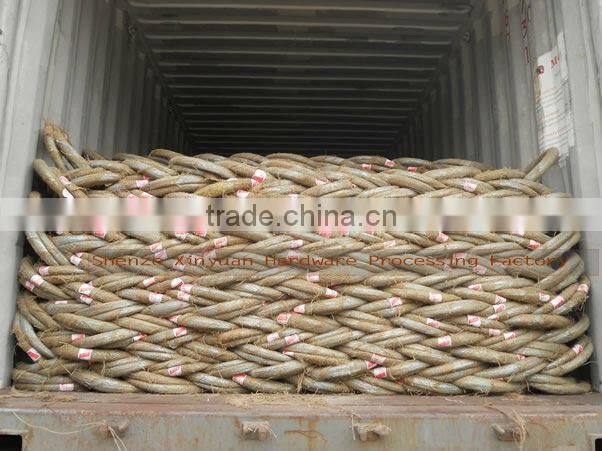

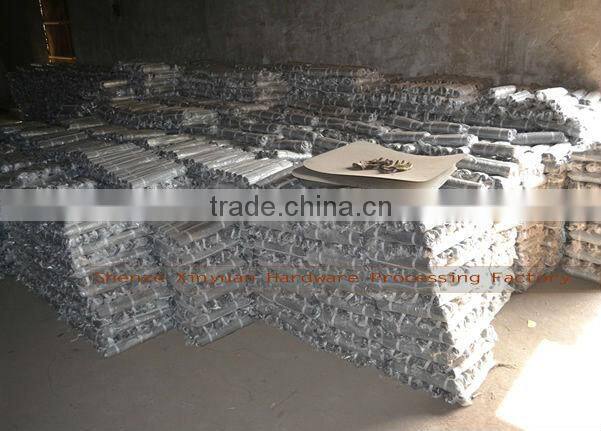

9.Packing: Plastic inside hessian cloth (or woven bag) outside.
