Home > Products > Welding Materials > Welding Rods E6013 Welding Electrode for Carbons Steel Welding Work
Welding Rods E6013 Welding Electrode for Carbons Steel Welding Work
- XINGANG PORT CHINA
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | TOPS | |
| Model Number | E6013,E7018,E6010,E6011,E7016 | Material | Steel Alloy | |
| Length | 300mm-450mm | Operating Current | 40-240 | |
| Welding Current | 40-70,50-80,80-120,150-190,180-240 | Operating Temperature | 2700 | |
| Diameter | 2.5mm,3.2mm,4.0mm,5.0mm | Application | Suitable for welding sheet metal structure made of low-carbon |
Product Description

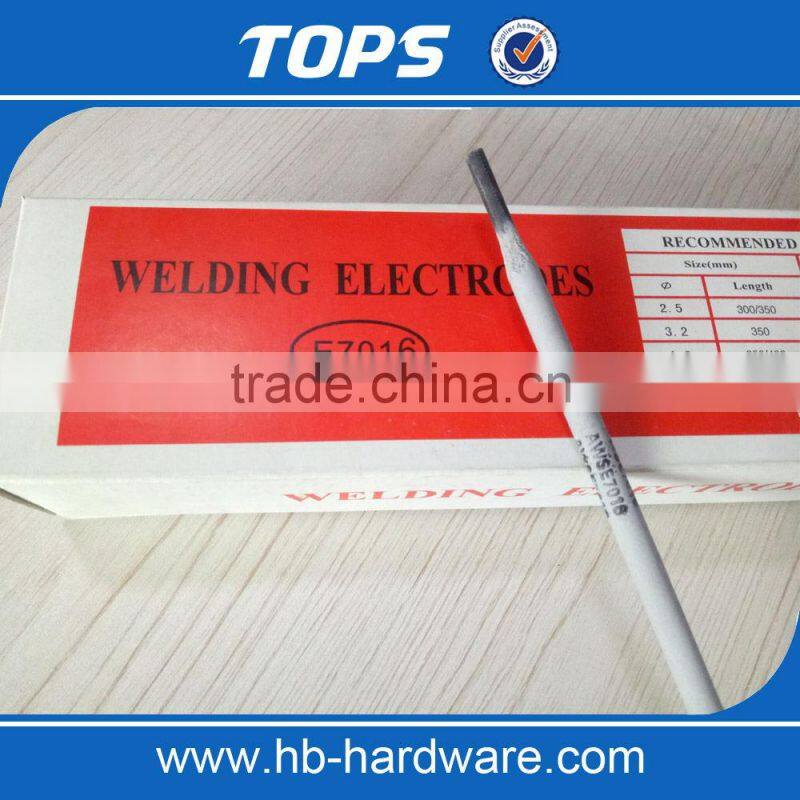

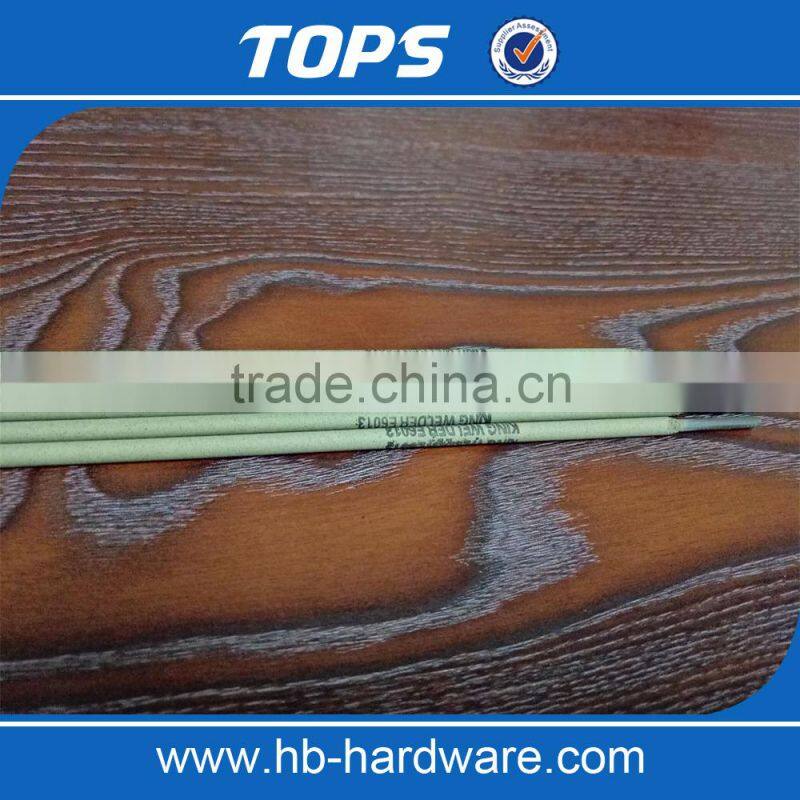

Welding rods E6013 welding electrode for carbons steel welding work

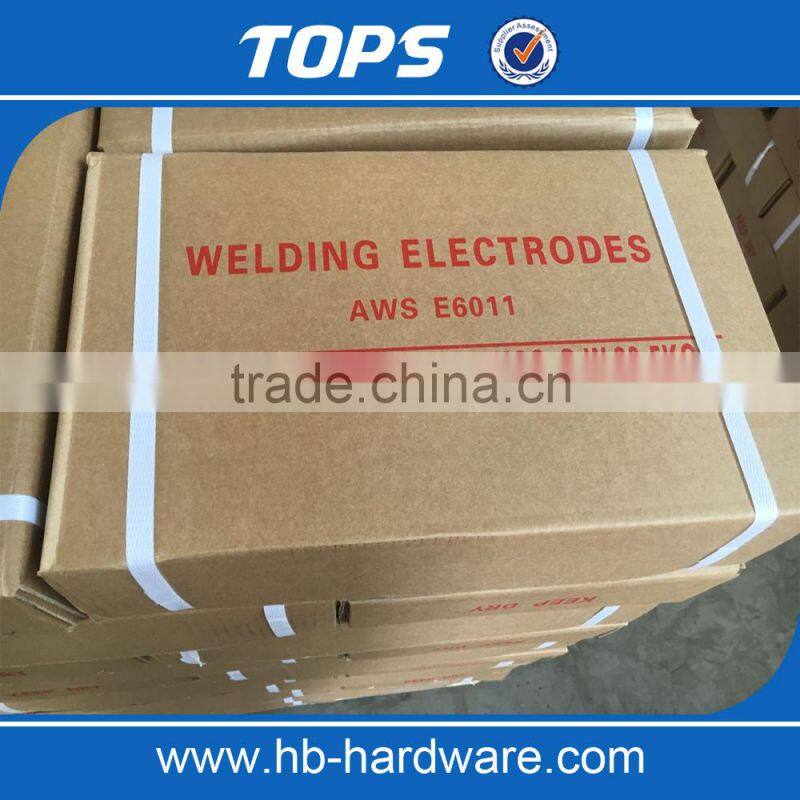

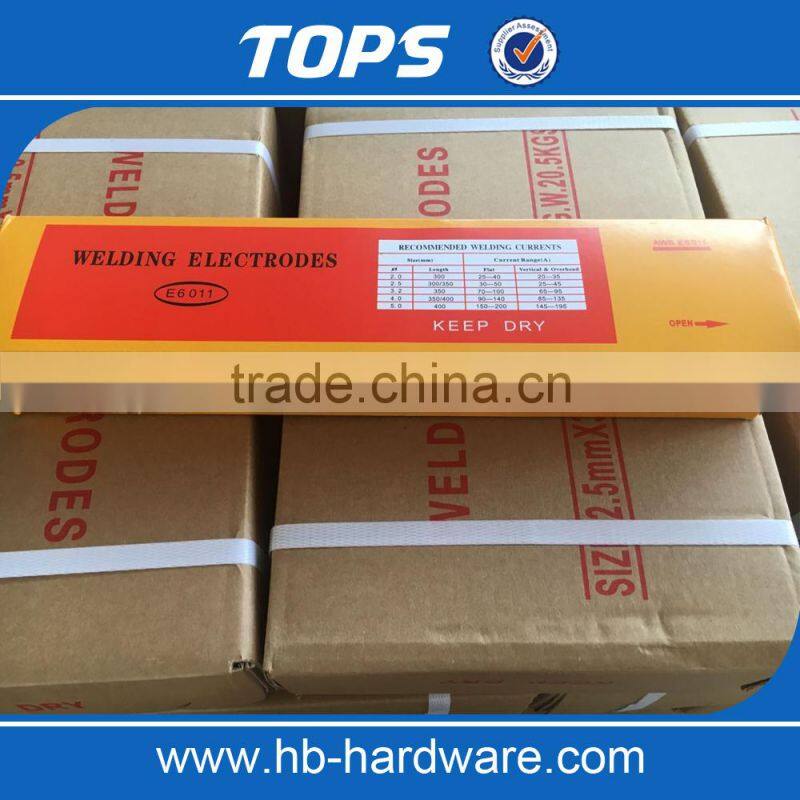

Detail package is following:
WELDING ELECTRODES STANDARD: AWS E6010 E6011
Size: 2.5MM X 300MM
Size: 3.2MM X 350MM
Size: 4.0MM X 400MM
(Packing: 5.0kg/inner boxes 4boxes/cartons=20kg)
ADVANTAGE
• All-position electrode for the welding of mild steel.
• Excellent choice for sheet metal lap and fillet welds.
• Easy restrike and easy slag removal.
•Manufactured under a quality system certified to ISO 9001 requirements
Chemical Composition of Wire(%):
| C | Mn | Si | S | P |
| ≤0.12 | 0.3-0.6 | ≤0.35 | ≤0.035 | ≤0.040 |
Mechanical Properties of Deposited Metal:
| Test Item | σb(MPa) | σc(MPa) | δs(%) | AKV(J) |
| Guarantee Value | ≥420 | ≥330 | ≥17 | - |
Recommended Welding Current:
| Electrode Diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 |
| Current Range(A) | 40-70 | 50-80 | 80-120 | 150-190 | 180-240 |
