4 pads portable axle weighing scale

4 pads portable axle weighing scale price

1. Weighbridge Platform:

SCS series electronic digital truck scale is a new generation truck scale which depends on dimastic truck scale advantage.

The truch scale is made of U-Shape beams and channel steel,and splices them together into the closed box-type structure,which is a very strong structure.

The welding process adopts advanced welding technology,effectively ensure the flatness and non-deformation of such a large weighing platform,geometrical size and rational distribution of welding stress.

2.Load Cell:

1). Rated load:200MT max

2). Safe overload:125%

3). Transmission baud rate:9600BPS

4). Creep:  ±0.02%FS/10°C

5). Protection Class:IP68

6).Recommemded excitation voltate: 10-12VDC

7). Max excitation voltage: 15VDC

8). Operating temperature range:-30~+70 °C

3.Digital Display Indicator

1). Type:D2008FP

2). Communication interface: RS485

3). 0.3'' digital LED display

4). 6 pcs status indications,subtract tare,clear tare automaticallu

5). dynamic test,digital fitering,

6). 24 pcs light touch keyboard.

7). Serial communication interface fixed with standard parallel printing inerface.

Packing:  The body of truck scale is nude packed and the accessories part are packed in carton.Install in 20' FCL or 40' FCL .

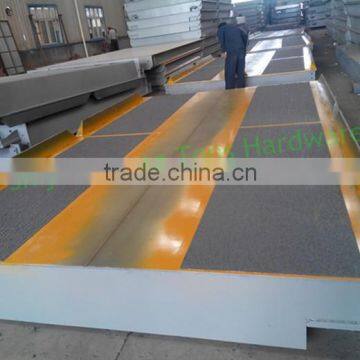

Product Pictures:

Our products has exported to Romania,Kenya,Pakistan,etc.

If any interested,pls do not hesitate to contact me.
