Frame Pipe

Specifications

_{^{frame pipe}}

 Products Details

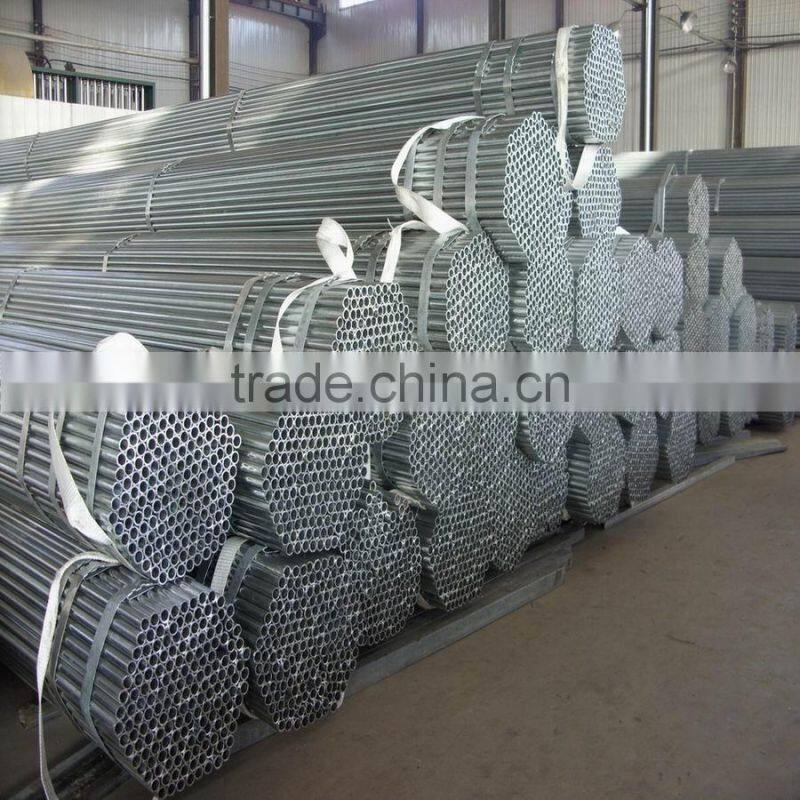

1) Round steel pipe: Size from 12mm to 325mm, thickness 0.6mm - 12mm

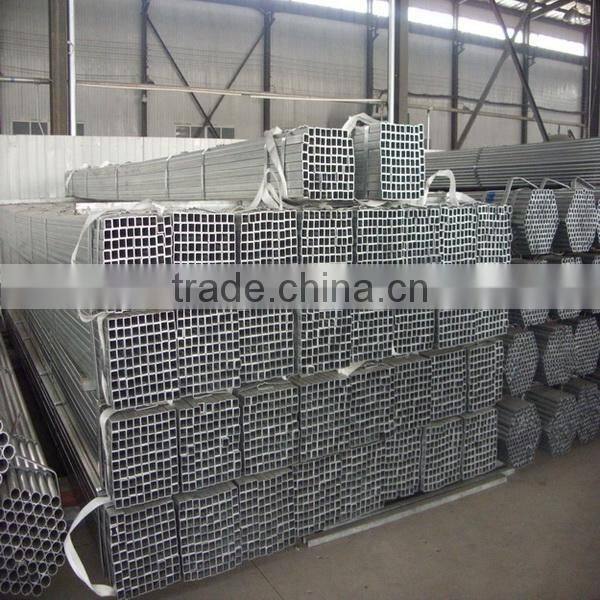

2) Square steel pipe:Size from 10mm*10mm to 400mm*400mm, thickness 0.6mm - 12mm

3) Rectangular steel pipe:Size from 10mm*20mm to 200mm*400mm,thickness 0.6mm-12mm

4) spiral steel pipe: Size from 219mm to 1620mm, thickness from 4.5mm to 12mm

5) seamless steel pipe: Size from 21mm to 820mm,thickness from 2.5mm to 30mm

6) Angle steel:  Size from 2# to 20#, thickness from 3mm to 24mm

7) Flat bar: Size from 12mm to 150mm, thickness from 2mm to 16mm

8) Channel steel:Size 8# -30#, web thickness 4.5mm-9.5mm,Flange thickness 7mm-13.5mm

9)  IPE: Size 100mm-270mm, web thickness 4.1m-6.6mm, Flange thickness 5.7mm-10.2mm

10)IPEAA:Size 80mm-160mm,web thickness3.2mm-4.0mm,Flange thickness 4.2mm-5.6mm

11)IBEAM:Size100mm-360mm,web thickness4.5mm-12mm,Flange thickness7.6mm-15.8mm

12) H BEAM: Size from 100mm to 900mm, thickness from 6mm, 8mm to 16mm,28mm

13) Cold rolled steel strip: Width from 32mm to 685mm, thickness from 0.3mm to 2.0mm.

14) PC steel stand: Size from 8mm to 18.5mm

15) PC steel wire: Size from 4.8mm to 9.0mm

16)  the other non-conventional type steel pipe as following

^{Standard:BS1139,BS1387-1985, ASTM A53B Sch10-40,ASTM A500, API5L.API5CT, DIN2440 and EN10219}

^{Material:Q195,Q235,Q345,SS400,S235JR,X42,X46,X52,X60,X65}

^{If you are  interested in  the product of above,please feel free contact us , we will do our best to help you .}
