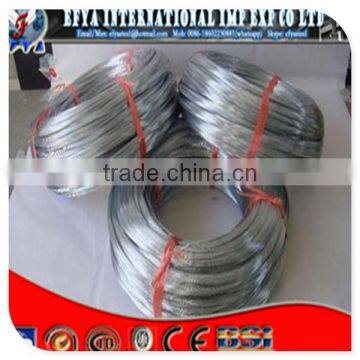

Galvanized Steel Wire
- TIANJIN CHINA
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Steel Grade | 1006,1008,1018,Q195 | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 0.15~6.00mm | Place of Origin | Tianjin, China | |
| Type | Other, Galvanized, electro galvanized, hot dipped galvanized | Application | Netting | |
| Alloy Or Not | Is Alloy | Special Use | Cold Heading Steel | |
| Model Number | EFYASTEEL-W | Brand Name | EFYASTEEL, EFYA |
Product Description
Specifications
Galvanized steel wireMaterial:1006,1008,1018,Q195
Size:0.15~6.00mm
Tensile strength:290~1200mpa
Kind:hot dip galvan
Galvanized steel wire
1.Product details:
Product Name: | Galvanized steel wire |
Standard | ASTM,BS,EN,ISO,DIN,AISI,GB,JIS |
Steel wire material | SAE1006,SAE1008,SAE1010,Q195,Q235,C45,C50,C55,C60,C65, 65Mn,C72A,C72B,C80,C82B,CT9A,GCr15, AND SO ON |
Diameter range | 0.1-13mm |
Main application | Construction ,fencing, manufacturing, netting, packaging, rope |
Tensile strength | according to the customer request |
Packing | Coils Packing, spools packing, or according to the customers' requirements |
Port of Shipment | Xingang Port,Tianjin, China |
Payment | L/C T/T |
MOQ | 5 Metric ton |
Supply ability | 5000 metric ton per month |
Delivery Time | 30 days after receiving 30% down payment |
Wire rod:1006,1008,1018,Q195
Size(mm) | Tensile strength(mpa) |
0.15~1.60 | 290~550 |
0.65~1.60 | 400~550 |
1.61~6.00 | 400~1200 |
Packing
Size(mm) | Coil size(mm) | Spool packing | Big coil packing | |
ID (mm) | OD(mm) | |||
0.15~0.26 | 6″ | 1~14kg |
|
|
0.27~0.60 | 8″ | 1~100kg |
|
|
0.61~1.60 | 12″,14″,16″ | 1~100kg | 250~400 | 400~770 |
1.61~6.00 |
| 14~500kg | 450 | 800 |
| 508 | 840 | ||
Zn coating
Size(mm) | Zn coating min(g/m2) | |||||||
A | AB | B | C | D | E | F | ||
A1 | B2 |
|
|
|
|
|
| |
0.25 |
|
| 30 | 20 | 18 |
|
|
|
0.25~0.40 |
|
|
| 30 | 25 | 20 |
|
|
0.40~0.50 |
|
|
|
| 30 | 20 |
|
|
0.50~0.60 |
|
|
|
| 35 | 20 |
|
|
0.60~0.80 | 120 | 110 |
|
| 40 | 20 |
|
|
0.80~1.00 | 150 | 130 |
|
| 45 | 25 |
|
|
1.00~1.20 | 180 | 150 |
|
| 50 | 25 |
|
|
1.20~1.40 | 200 | 160 |
|
| 50 | 25 |
|
|
1.40~1.60 | 220 | 180 |
|
| 50 | 35 | 30 |
|
1.60~1.80 | 220 | 180 |
|
| 70 | 40 | 30 |
|
1.80~2.20 | 230 | 200 |
|
| 80 | 50 | 40 |
|
2.20~2.50 | 240 | 210 |
|
| 80 | 55 | 40 |
|
2.50~3.00 | 250 | 230 |
|
| 90 | 70 | 45 |
|
3.00~4.00 | 270 | 250 |
|
| 100 | 85 | 60 | 30 |
4.00~5.20 | 290 | 270 | 245 |
| 110 | 95 | 70 | 40 |
2. Process Flow:
s:
4.Surface & Packages:
company
Established in 2007, Efya International Imp. & Exp. Co., Ltd. is located in "the home of steel products" - Daqiuzhuang Town. We are situated in the triangular delta which is next to Beijing, Tianjin, and Hebei Province, with advanced economy and convenient transportation. We are near Xingang Port, Tianjin. Since the establishment, EFYA has played an active role in this heavy industry and has been a professional supplier of steel products.
Our Services:
1. Timely, accurate and detailed inquiry reply
2. we patiently answer your questions , all productions are producing by strict quality control of tensile strength, breaking load test and zinc coating weight test by deep guarantee. (We'd like to let you know that no matter the quality,tensile strength or the toughess can meet your demands.)
3. we supply free small sample
4. we can do sample testing for u
5. u can visit our factory
6. Product quality assurance, order processing timely, perfect packaging, short production cycle,fast delivery, safe transportation, providing after-service to enhance our further services, do the customer feedback informations, etc.
We are trying innovating ourselves for our all reliable business partner in rapidly changing
environment, here we guarantee competitive price and packing, delivery, top quality service for you and ish your positive reply.
Ms Kelly looking forward to establish long-term business with u early!
