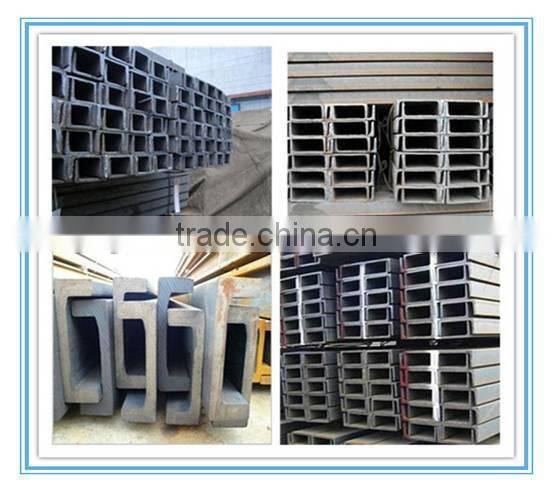

Good Quality U Channel Steel (GB,ASTM)

Product Name

hot rolled channel steel, GB standard channel steel, U channel steel, JIS standard channel steel, ASTM standard channel steel, Galvanized Channel Steel, U BEAM

Size

ASTM

51*25*3 mm--305*80*13 mm

GB

50*37*4.5 mm--320*88*8 mm

JIS

75*40*3.8 mm--300*90*9 mm

DIN

63*40*4.8 mm--320*92*12 mm

EN

30*15*4 mm--400*110*14 mm

Material

Q195,Q215,Q235,Q345,A36,SS400,SS540, SS400-540Series,S235JR-S355JR,A36-A992,ST37-2, Q345/ST52,S235,S355,SM400A,SM400B,

Standard

GB/T700-1988,GB/T 706-2008,GB/T13793-92,GB/T 11263-2010,ISO630/E235B,

JIS G3101,JIS G3131,JIS G3106 ,DIN1025/EN10034,DIN17100/EN10025,etc

Usage

Used For Structure Construction, curtain wall engineering, mechanical equipment, vehicle manufacturing, etc

Product Category

Metallurgy, Mineral &Energy

Surface Treatment

1.bareness

2.galvanized

3.print

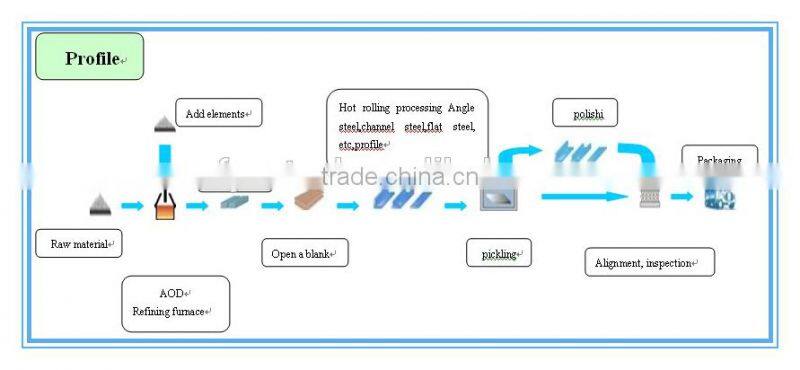

Technique

hot rolled

Thickness

3mm-13mm or by customer’s requirements

Length

6m 9m 12m

Shape

U Channel

Inspection

ISO9001-2000,

Package

IN BUNDLE

Delivery

within 20 days

Port of Shipment

Xingang Port,Tianjin, China

Payment

T/T   L/C  D/A   D/P  Western Union   Money Gram

Others

PIPE AND Fitting as screws and flange also can be supplied.

51×25×3mm~305×80×13mm

Item

Standard SIZE

h(mm)

b(mm)

d(mm)

Theoretic Weight

EFYA001

BSC2*1*1/8

51

25

3

2.37 kg/m

EFYA002

BSC2*1*3/16

51

25

5

3.46 kg/m

EFYA003

C3*3.5

76

35

3.4

5.20 kg/m

EFYA004

C3*4.1

76

35

4.3

6.10 kg/m

EFYA005

C3*5

76

37

6.6

7.40 kg/m

EFYA006

C3*6

76

40

9

8.90 kg/m

EFYA007

C4*4.5

102

40

3.2

6.70 kg/m

EFYA008

C4*5.4

102

40

4.7

8.00 kg/m

EFYA009

C4*7.2

102

43

8.2

10.80 kg/m

EFYA010

C5*6.7

127

44

4.8

10.4 kg/m

EFYA011

C5*9

127

47

8.3

13.00 kg/m

EFYA012

C6*8.2

152

48

5.1

12.22 kg/m

EFYA013

C6*10.5

152

51

8

15.64 kg/m

EFYA014

C6*13

152

54

11.1

19.36 kg/m

EFYA015

C7*9.8

178

53

5.3

14.6 kg/m

EFYA016

C7*12.2

178

55

8

18.2 kg/m

EFYA017

C7*14.7

178

58

10.6

22.00 kg/m

EFYA018

C8*11.5

203

57

5.6

17.10 kg/m

EFYA019

C8*13.7

203

59

7.7

20.5 kg/m

EFYA020

C8*18.5

203

64

12.4

27.90 kg/m

EFYA021

C10*15.3

254

65

6.1

22.80 kg/m

EFYA022

C10*20

254

69

9.6

30.00 kg/m

EFYA023

C10*25

254

73

13.4

37.00 kg/m

EFYA024

C10*30

254

76

17.1

45.00 kg/m

EFYA025

C12*20.7

305

74

7.2

30.80 kg/m

EFYA026

C12*25

305

77

9.8

37.00 kg/m

EFYA027

C12*30

305

80

13

45.00 kg/m
