Home > Products > Liners > Low Friction no Blocking Uhmwpe Bunker Liner With Competitive Price

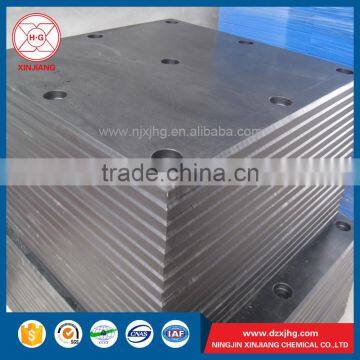

Low Friction no Blocking Uhmwpe Bunker Liner With Competitive Price

FOB Price

US$ 3.5 - 6 / Kilogram

1 Kilogram(Min. Order)

Port Tianjin/Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	XinJiang
Model Number	XJ-L	Material	Other, PE, UHMW or HDPE
Thickness	5-50mm	Size	Custom Size

Product Description

Low friction no blocking uhmwpe bunker liner with competitive price

Product Description

Properties of UHMWPE liner

No blocking
No bonding
Protect equipment against wear or tear
Improve unloading speed
Low cost, just 1/3 of carbon steel
Light weight, 1/2 of steel
Excellent wear resistance, twice stainless steel

Applications of UHMW / HDPE materials

UHMW / HDPE are widely used as lining materials of dump truck, bucket,chute, hopper, coal bunker etc. for loose materials transportation, such as sand, dirt, coal powder. With UHMW / HDPE liners, the tansportation or unloading speed will be largely increased. And the equipment are well protected against wear or tear.

What's more, UHMW / HDPE are also used to make outrigger pad, harbor fender pad etc.

Technical data of UHMWPE liner

Properties	unit	Result
Specifica Gravity	g/cm³	0.95
Max Continuous Operating Temp:	℃	80
Max Short Term Operating Temp(3~4hours):	℃	130
Tensile Strength at Yield:	Mpa	23.3
Tensile Strain at Yield	%	21
Tensile Strength	MPa	35.2
Elongation at Break	%	350
Hardness Rockwell:	-	M61
Dielectric Strength:	KV/mm	40
Surface Resistivity:	Ohms	>1014
Impact Resistance Charpy Unnotched:	KJ/m2	No Break
Impact Resistance Charpy Notched:	KJ/m2	>100

Packaging & Shipping

Low friction no blocking uhmwpe bunker liner with competitive price

Packing	Plastic Film, Pallet, Wooden Box, Carton, etc.
Shipping	International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean, Air

Quality Certificate

ISO Registration NO.:02113Q10326R0S

Our certificate

Factory show

Production line

Other products available,

UHMW-PE plate

UHMW-PE fender pads

UHMW-PE liners

UHMW-PE outrigger pads

UHMW-PE road protection mat

UHMW-PE chain guide

UHMW-PE cutting board

UHMW-PE skating rink

UHMW-PE suction box cover

UHMW-PE machined parts

Company Information

Ningjin Xinjiang Chemical Co., Ltd. established in 1996, is one of the largest engineering plastic product manufacturers in China. We are specialized in UHMWPE products, like UHMWPE Sheet, UHMWPE Fender pad, UHMWPE Linings, and it's machined parts.
UHMWPE products are widely applied on electric fields, wharf and port, mining, chemical plant and so on, which bring a lot of social benefits and economic benefits. Now they are popular all over the world. We hope to establish a wide and deep cooperation relation with enterprises both home and abroad!

FAQ

1.Q:What color of the UHMWPE / HDPE bedliners can you produce ?

A: Red ,yellow,blue,black,green ,gray ,double colors are available.

2.Q:What is your delivery time ?

A:It depands on volume .usually about 7 days

3.Q:How can i get the sample ?

A:Small size of the sample is free.

4.Q:What is the payment term?

A:T/T,L/C,Western Union and others
