Mini Pocket Wind Speed Meter

Mini Pocket Wind Speed Meter

Features:

· Air Velocity Measurement Range: 0.3 to 30m/s (±5%)

· Temperature Measurement Range: -10 to 50°C (±1°C)

· Humidity Measurement Range:0%-99% (±5% at 20%-90%)

· Air Velocity Unit Selection: m/s, ft/min, knots, km/h, mph

· Beaufort scale

· °C / °F selection

· Max/Min/Avg Reading Selection

· Hold Function

· Wind-chill Indication

· Low Battery Warning

· Auto Power Off (with override function)

· Calibration Function *Use with caution, please read the instructions carefully*

· Resolution: 0.1m/s, 1%,0.1℃

· CE Certified & RoHS Compliant

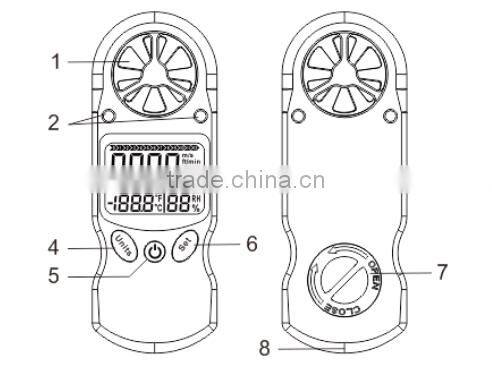

Product description:

1. Vane Impeller

2. Temperature & Humidity Sensors

3. LCD with Blue Backlight

4. Wind Speed Unit & Temperature selection

5. Power Button

6. Set function Button

7. Battery Cover

8. Lanyard Attachment Point

  Specification:

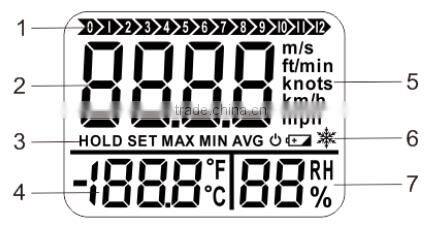

LCD Display:

1. Beaufort Scale

2. Primary Display for Air Velocity

3. HOLD: Displayed when meter is on hold function

  SET: Displayed when meter is in calibration mode

  Max: When is this mode the meter will display the maximum speed the Air velocity has reached

  Min: When is this mode the meter will display the minimum speed the Air velocity has reached

  AVG: When is this mode the meter will display the average speed the Air velocity has reached

4. Temperature Display (℃/℉ switchable)

5. Air Velocity measurement options:

  m/s: Meters per Second

  ft/min: Feet per Minute

  knots: Knots

  km/h: Kilometers per Hour

  mph: Miles per Hour

6. Displayed when the Auto Power Off Function is overridden

    This warning will display when the battery is low on powe

    This warning displays to indicate wind chill when the temperature is below °C

7.  Relative Humidity Display (RH)

Operation:

1. Turning on and off your Meter
 a. Press the button to turn on your meter.
  After 10 minutes without any operation the meter will power off.

 b. To override the Auto Power Off hold down the Set button then press the button

  to turn on. Warning, the meter will stay on until the battery runs out unless you turn off by

  holding down the  button.

2. Selecting Air Velocity & Temperature Units of Measure

  a. Quick short presses of the Unit Button will select the wind speed units of measure view

  (m/s, ft/min, knots, km/h, mph).

  b. An extended press of the Unit Button will select the temperature units view °C / °F.

3. Selecting Type of Reading (Maximum, Minimum , Average, Hold, Normal)

  a. A short press of the Set Button will select MAX/MIN/AVG reading. When none are

  displayed on the LCD you are viewing the current normal reading.

  b. An Extended press of the Set Button will hold the reading.

4. Backlight
a. The Backlight will turn off after 10 seconds without use. To override hold down the Units Button then

  press theButton. The Backlight will then illuminate constantly.
5. Relative Humidity (RH)

  Relative humidity is the amount of moisture in the air compared to what the air can "hold" at

  that temperature. When the air can't "hold" all the moisture, then it condenses as dew. RH is

  effected by wind speed, i.e. the more powerful the wind the less moisture there will be in the air.

6. Calibration Mode ! WARNING! THIS SHOULD ONLY BE CARRIED OUT BY

  TRAINED PROFESSIONALS AT AN ACCREDITED CALIBRATION FACTLITY!

  In the event where calibration is required, please follow these steps:

 Step 1:Turn on the meter,then press Set Button and Units Button at the same time to enter the calibration;

Step 2:Press Units Button to choose the Mode 1-wind speed;Mode 2-temperature;Model 3-humidity; then press Set Button to enter the method.

Step 3.Press Units Button to choose the jumping number,press Set Button to adjust the reading.

Step 4.Press the Power Button to store the setting.

Warning! Your warranty is void if this procedure is carried out by an untrained individual and/or at a non-accredited calibration facility which is not universally recognized.


Battery Replacement:

  If the meter does not power on as usual or the low battery icon  appears on the LCD,

  replace with a new CR2032 Lithium Battery. To do this, turn the battery compartment cover in a

  counterclockwise direction to remove it.

  Remove the old battery and insert a new battery face up, with the bottom side in contact with

  the two pins.

  Dispose of the battery in an environmentally safe and sound manner at a recycling point.
  DO NOT DISPOSE OF IN YOUR BIN!

Caution:

· This meter is accurate at low and mid-range air speeds. Consistent use at very high speeds, i.e. from the window of a fast moving car will damage the impeller’s bearing and reduce accuracy.

· This meter is not a personal safety device.

Trouble Shooting:

1. Power on but no display or the display disappears

  a. Check the battery is in place with good contact to the pins and the correct way up.

  b. Remove battery for one minute and re-install.

  c. Replace the battery.

2. For all other issues please contact your supplier.

Warranty:

  This meter has a one year warranty for a period of one year from date of purchase.

  This warranty covers normal operation and does not cover batteries (including leaks), misuse,

  abuse, alteration, tampering, neglect, improper maintenance or improper calibration. Nor can

  the warranty be used as an excuse for a false claim simply because you have changed your mind

  after the initial 14 day period.

  Proof of purchase is required for warranty repairs.
