Home > Products > Link Chain & Accessories,wire Rope > Welded hot dip galvanized twisted silver link chain

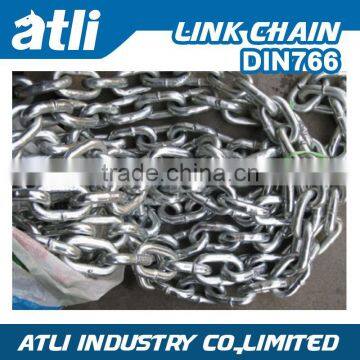

Welded hot dip galvanized twisted silver link chain
- Shanghai or Ningbo
- T/T Credit Card
You May Like
-
G80 high tensile black painted Alloy Steel lifting chain
-
High tensile black painted Alloy Steel G80 stainless steel link chain
-
Alloy Steel high tensile G80 silver link Chain
-
29KB1-03521 Higer bus mounting hot sale high quality
-
6*7 FC galvanized Steel wire
-
6*7 IWS Ungalvanized and Galvanized Steel Wire Rope
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ATLI | |
| Model Number | DIN5684 | Structure | Welded Chain | |
| Function | Other, lifting chain | Material | Alloy | |
| Standard or Nonstandard | Standard |
Product Description
.Application:Scraper conveyer ,Scraper loader
2.Material:High-quality alloy steel,dip-galvanized
3.Grade :G100,G80
4.Safety :Not less than the minimum proof load breaking load eighty percent
The safe load ,fatigue number not less than 30000 times
5,Specifications:
Nominal | Working load limit(max) | Proof test (min) | Minimum breaking force | Inside length(max.) | Inside width(min.) | ||||||
in | mm | lbs | Kg | lbs | KN | lbs | KN | in | mm | in | mm |
7/32" | 5.5 | 2100 | 970 | 4200 | 19 | 8400 | 38 | 0.69 | 17.6 | 0.281- 0.325 | 7.14- 8.25 |
9/32" | 7 | 3500 | 1570 | 7000 | 30.8 | 14000 | 61.6 | 0.9 | 22.9 | 0.375- 0.430 | 9.53-10.92 |
5/16" | 8 | 4500 | 2000 | 9000 | 40.3 | 18000 | 80.6 | 1.04 | 26.4 | 0.430- 0.500 | 10.92-12.7 |
3/8" | 10 | 7100 | 3200 | 14200 | 63 | 28400 | 126 | 1.26 | 32 | 0.512- 0.600 | 13.00-15.2 |
1/2" | 13 | 12000 | 5400 | 24000 | 107 | 48000 | 214 | 1.64 | 41.6 | 0.688- 0.768 | 17.48- 19.5 |
5/8" | 16 | 18100 | 8200 | 36200 | 161 | 72400 | 322 | 2.02 | 51.2 | 0.812- 0.945 | 20.63-24.0 |
3/4" | 20 | 28300 | 12800 | 56600 | 252 | 113200 | 504 | 2.52 | 64 | 0.984- 1.180 | 25.00-30.0 |
7/8" | 22 | 34200 | 15500 | 68400 | 305 | 136800 | 610 | 2.77 | 70.4 | 1.080- 1.300 | 27.50-33.0 |
1" | 26 | 47700 | 21600 | 95400 | 425 | 190800 | 850 | 3.28 | 83.2 | 1.280- 1.540 | 32.50-39.0 |
1- 1/4" | 32 | 72300 | 32800 | 14600 | 644 | 289200 | 12880 | 4.03 | 102 | 1.580- 1.890 | 40.00-48.0 |
