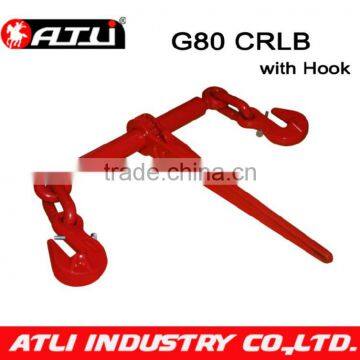

US TYPE RED PAINTED STANDARD RATCHET TYPE LOAD BINDER
Negotiable
/ Piece
100 Pieces(Min.Order)
- 200 Ton / Tons per Month
- Shanghai or ningbo
- T/T
You May Like
-
High strength no link no hook ratchet type load binder
-
Drop Forged Standard Lever Type Load Binder
-
Drop forged Steel lever load binder
-
US type painted ratchet type load binder
-
ATLI SKC-S6-G2130BX Factory Price Screw Pin Anchor Shackle/bow Shackle
-
ATLI SKA-S6-S2130BX Factory Price Screw Pin Anchor Shackle/bow Shackle
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ATLI | |
| Model Number | G80 |
Product Description
pany introduce
duct details
l: alloy steel
Plastic spraying paint or galvanized
Heat treatment, quenching and tempering treatment
Breaking force: 3.5 times the work force
Products: handle for casting, other are all die forging, hook with wings, with safety latch
Packing: packed in cartons after tray while the iron is hot
Packing quantity: 5 pieces/carton
Typing requirement: with China or without China
Working Load Limit:5896.7kg
Min-Max Chain Size(in.) | Working Load Limit(lbs.) | Proof Load(lbs) | Ultimate Load(lbs.) | Weight Each(lbs.) | Handle Length(in.) | Dimensions(in.) | |||||||
| A | B | C | E | E1 | F | F1 | G | ||||||
5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | 13.92 | 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12.9 | 13.92 | 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 12.2 | 35.04 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 21 | 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
| 1/4-5/16 | 2600 | 5200 | 9200 | 3.52 | 7.16 | 7.16 | 0.89 | 1.17 | 1622 | 21.26 | 17.79 | 22.83 | 0.35 |
