150-180 TPH Crusher Line for Granite

Aggregate Plant 150~180T/H

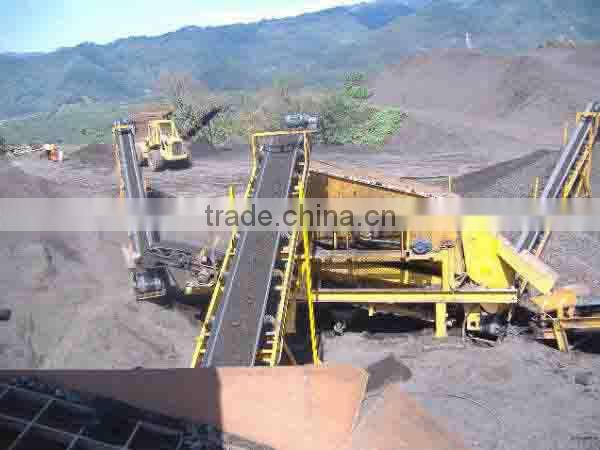

Introduction of 150~180T/H Aggregate Plant:

In comparison with 100-120TPH rock crushing plant, 150TPH-180TPH rock crushing line is more competent when processing medium or over hard ores, especially while it is used for producing big aggregate.
All the machines applied in this production line work together and form a circle flow production line, which improve the efficiency and make the central control easier.

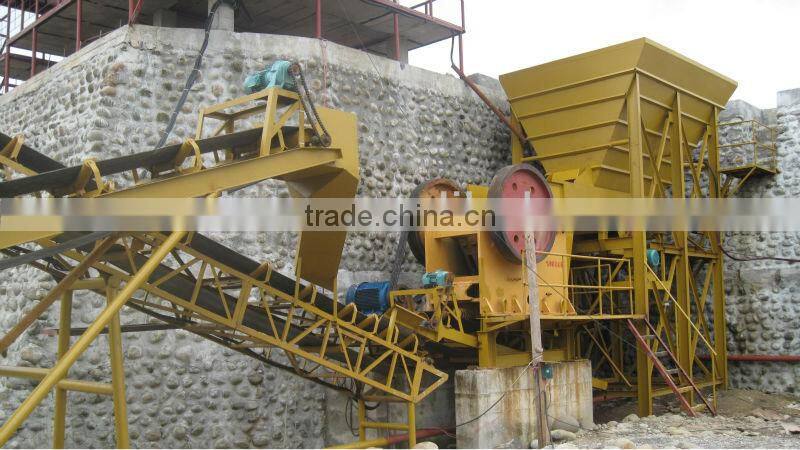

The primary jaw crusher PE750X1060 equips with stronger, enhanced jaw plates and larger feed opening, which increases the reduction ratio. In addition, thicker steel plate has been applied to main frame and flywheels, while the diameter of the flywheels are enlarged that greatly increased the weight of the machine, so when it works, the vibration is very slight but the crushing kinetic energy is very forceful.
The secondary crusher we use is impact crusher which is widely used and welcomed by users in lots of countries due to its high working efficiency.
For the purpose of improving finished products’ quality, water pipe or other washing equipments can be equipped upon filtrating equipments to clean the finished products.
Tertiary crusher such as VSI or others may work as additional processing machines to diversify the final products. Tailor-made dust catcher or dust cover can also be applied to this plant.
This production line calls for medium investment, you always get much more than you pay, it is the ideal choice for the clients.

Main Components of 150~180T/H Aggregate Plant:

Vibrating Feeder ZSW 490 x110

Max Feeding Size: ≤630mm

Power: 15 kw

Jaw Crusher PE-750 X 1060

Max Feeding Size: ≤630mm

Power: 110kw

Impact Crusher PF-1315

Max Feeding Size: ≤500mm

Power: 220kw

Vibrating Screen 3YK1854

Sep1=40mm  Sep2=20mm  Sep3=5mm

Power: 22kw

Auxiliary Components:

Belt Conveyor

B800 X 17M

B800 X 20M

B500 x 22M

B500 X 16M

B500 X 16M

B500 X 16M

Control system

Electronic Control Cabinet
