2014 High Capacity Asphalt Crushing Plant Price

Specifications

2014 High Capacity Asphalt Crushing Plant for Sale

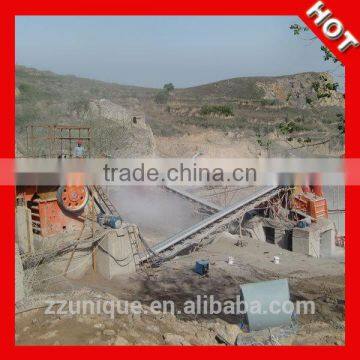

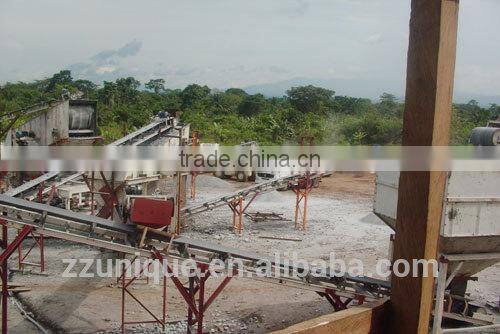

Introduction of  Asphalt Crushing Plant

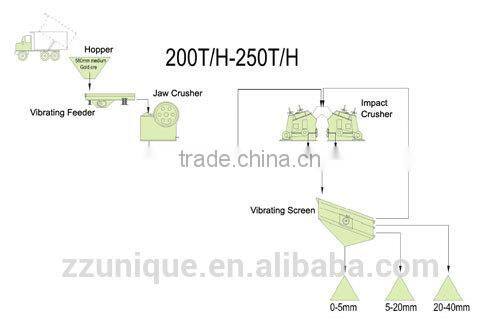

200-250TPH (output 200-250 ton per hour)  Asphalt Crushing Plant exploit the potential of PE750X1060 as the preliminary jaw crusher. In practical production, through enlarging the outlet size, the overall output and production efficiency are improved greatly, meanwhile, the service time of machine is extended and production cost is reduced.

In secondary crushing process, two impact crushers (PF-1214) operate at the same time, which ensures its output. The reduction ratio can be controlled by regulating the impact-bracket. The finished products are expected to be regular cube-shaped, needle shape take up small proportion, no inner-cracks, with high compressive strength. They are quite suitable for speedway, bridge, tunnel and other construction projects.

By utilizing a more efficient Round Vibrating Screen during the filtration processing, the raw material is more precisely and sufficiently classified.
This production line can also be perfected by other supplementary equipments so as to get further processing products.

Main Components of Asphalt Crushing Plant

Vibrating Feeder ZSW 490 x110

Max Feeding Size: ≤630mm

Power: 15 kw

Jaw Crusher PE-750 X 1060

Max Feeding Size: ≤630mm

Power: 110kw

Impact Crusher PF-1214 / 2 units

Max Feeding Size: ≤350mm

Power: 132kw x 2

Vibrating Screen 3YK 2160

Sep1=40mm  Sep2=20mm  Sep3=5mm

Power: 30kw

Auxiliary Components of Asphalt Crushing Plant

Belt Conveyor

B1000 X 18M

B1000 X 21M

B650 X 23M

B650 X 18M

B650 X 18M

B650 X 18M

Control system of Asphalt Crushing Plant

Electronic Control Cabinet
