2013 Hammer Mill for Stone Crushing

FOB Price

USD $2,666 - $56,666 / Set

1 Set(Min.Order)

Supply Ability 68 Set / Sets per Month
Port Qingdao; Shanghai; Tianjin etc.
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hammer Crusher
Place of Origin	Henan, China	Brand Name	UNIQUE
After-sales Service Provided	Engineers available to service machinery overseas	Application	coal, salt, plaster, alum, brick, tile and limestone

Product Description

Specifications

Hammer Mill for Stone Crushing:
1. High reduction ratio;
2. High effiency;
3. Energy saving;
4. Easy mainenance...

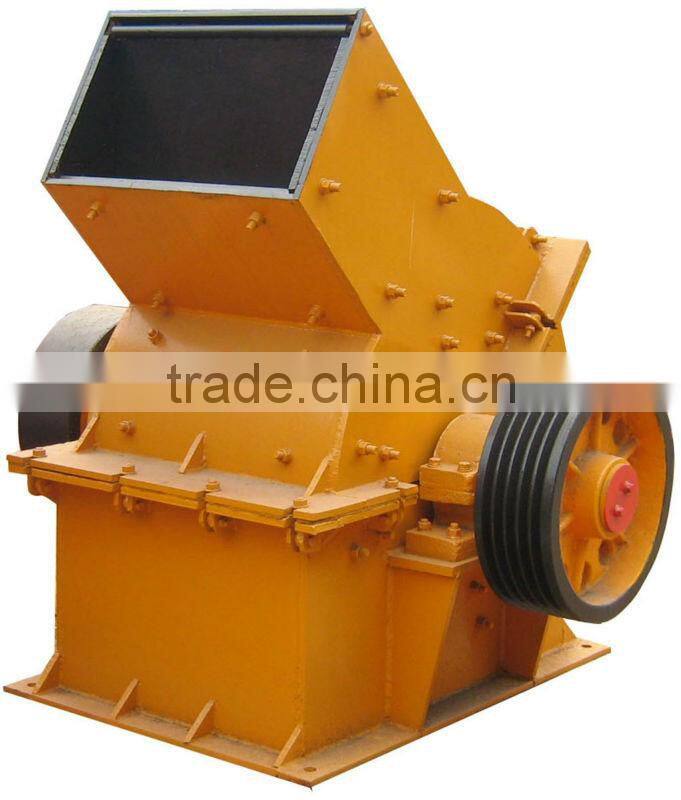

2013 Hammer Mill for Stone Crushing

Usage of Hammer Mill for Stone Crushing

Hammer crusher is applicable for brittle minerals crushing, such as coal, salt, plaster, alum, brick, tile and limestone with compression strength no more than 100mpa and humidity no more than 15%.

Operating Principle of Hammer Mill for Stone Crushing

The main working part of hammer crusher is rotors with hammer. The rotors consist of main shaft, disk, pin shaft and hammers. The motor drives the rotors to rotate quickly in the crushing cavity. Raw materials enter the crusher through the feed opening and are stricken, impacted, cut and ground by the high-speed hammer to small size. There is a screening plate under the rotor, so that materials with size smaller than the screen mesh will be screened out and others are left to be further hammered and ground until reach the standard size.

Specification of Hammer Mill for Stone Crushing

Type	Specifications	Feeding size(mm)	Discharging size(mm)	Capacity (m³/h)	Motor Power (kw)	Total weight (t)	Dimensions (LWH)(mm)
Hammer Crusher	HC400*300	<=200	<=25	5-10	11	0.8	900670860
	HC600*400	<=250	<=30	10-22	22	2.26	120010501200
	HC800*600	<=250	<=35	18-40	55	4.8	131011801310
	HC1000*800	<=350	<=35	25-50	75	5.9	160013901575
	HC1000*1000	<=350	<=35	30-55	90	8	180015901775
	HC1250*1250	<=350	<=35	35-65	132	14	206016001890
	HC1400*1400	<=350	<=35	50-100	280	32	236518702220
	HC1600*1600	<=350	<=35	100-150	480	37.5	305028502800

Zhengzhou Unique Industrial Equipment Co., Ltd,

a reliable and professional supplier of Hammer Mill for Stone Crushing
