2013 PYB1200 Spring Cone Crusher for Quarry Project
- Qingdao
- T/T
You May Like
-
Best Price of Small Hammer Mill for Soft Rock Crushing
-
Professional & Best Price Roller Crusher in 2013
-
Spring Type Classical Cone Crusher PYB-1200 for Hard Material Crushing
-
China 3 Feet Small Hydraulic Cone Crusher for Hard Stone Mining
-
Top Quality Mineral Stone Screening Machine for Separating
-
2014 Unique Small Gold Ore Jaw Crusher PE-250x400 for Mineral Process
Product Details
| Condition | New | Type | Cone Crusher | |
| Application | Metallurgy, construction, road building, chemical & silicate industry | Motor Type | AC Motor | |
| Power(W) | 110 | Capacity(t/h) | 110-200 t/h | |
| Place of Origin | Henan, China | Brand Name | UNIQUE | |
| Model Number | PYB1200 | Dimension(L*W*H) | 4152*2300*2980mm | |
| Weight | 24.7t | Certification | ISO | |
| Warranty | 15 months |
Product Description
Specifications
suitable for hard stone crushing with large capacity and high crushing ratio| Model | Crushing cone dia. (mm) | Max. feed size (mm) | Discharge size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Dimensions (mm) |
| PYB1200 | 1200 | 145 | 20-50 | 110-200 | 110 | 24.7 | 4152*2300*2980 |
Cone Crusher is one of the main types of crushers in a mine site or ore processing plant. Cone crushers are designated in size either by the gape and mantle diameter or by the size of the receiving opening.

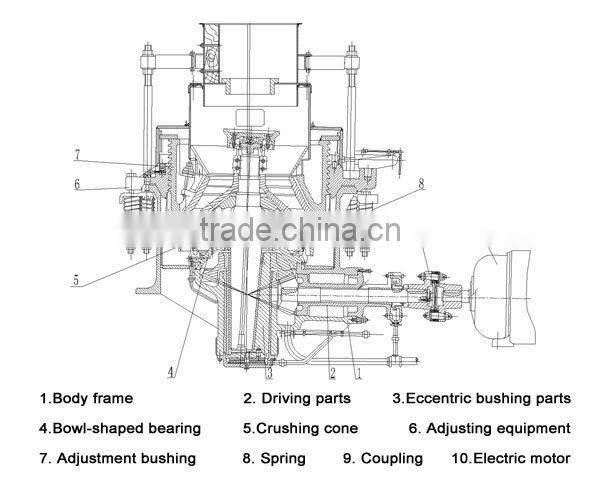

Cone crushers can be used for primary or secondary crushing. The crushing action is caused by the closing of the gap between the mantle line (movable) mounted on the central vertical spindle and the concave liners (fixed) mounted on the main frame of the crusher. The gap is opened and closed by an eccentric on the bottom of the spindle that causes the central vertical spindle to gyrate. The vertical spindle is free to rotate around its own axis.
