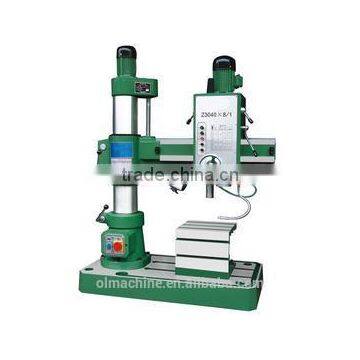

Radial Drilling Machine, dia 32 40mm
You May Like
-
Radial Drilling Machine model ZX3840 with dia. 40mm
-
Radial arm Drilling Machine with dia. 62mm, frequency conversion, hydraulic drilling machine
-
Radial Drilling Machine Z3032x7 dia 31.5mm
-
W11S Numerical control Universal Hydraulic Rolling machine 12x2000 t0 160x4000mm
-
W11 Mechanical 3-roller Symmetrical Rolling machine 6x1500 to 25x2500mm
-
W12 Four-roller Bending machine 8x1500 to 60x3000mm
Product Details
| Condition | New | CNC or Not | Normal | |
| Certification | CE ISO |
Product Description
Radial Drilling Machine
| Z3032×10/1,Z3040×10/1,Z3040×13-1 |
Max drilling dia (mm) | 32/40,32/40,40 |
Spindle axis to column (mm) | 300~1000,300~1000, 300~1300 |
Column dia (mm) | 240,240,280 |
Spindle taper (mm) | MT4 |
Spindle travel (mm) | 280 |
Spindle speed range (r/min) | 32~2500 |
Spindle speed steps | 16 |
Spindle feed range (mm/r) | 0.10~1.25 |
Feed steps | 8 |
Spindle nose to base (mm) | 220~1000,220~1000,300~1320 |
Work table (mm) | 600×450×450 |
base (mm) | 1710×800×160,1710×800×160,2050×900×200 |
Machine dimension (mm) | 1760×800×2050,1760×800×2050,2100×900×2300 |
Motor power (kW) | 2.2,2.2,3 |
G.w./n.w. (kg) | 2100/1600,2100/1600,3800/2500 |
Packing size (cm) | 187×97×220,187×97×220,236×117×260 |
| Z3032×10 / Z3040×10 |
Max drilling dia (mm) | 32,40 |
Spindle axis to column (mm) | 200~1000 |
Column dia (mm) | 240 |
Spindle taper (mm) | MT4 |
Spindle travel (mm) | 250 |
Spindle speed range (r/min) | 71~1800 |
Spindle speed steps | 8 |
Spindle feed range (mm/r) | 0.13~0.54 |
Feed steps | 4 |
Spindle nose to base (mm) | 264~1064 |
Work table (mm) | 400X450X400 |
base (mm) | 1500X740X160 |
Machine dimension (mm) | 1730X750X2360 |
Motor power (kW) | 2.2,3 |
G.w./n.w. (kg) | 1700/1400 |
Packing size (cm) | 187×97×220 |
| Z3032×8/1,Z3040×8/1,ZQ3040×10/1 |
Max drilling dia (mm) | 32/40,40 |
Spindle axis to column (mm) | 320~820,320~1020 |
Column dia (mm) | 200 |
Spindle taper (mm) | MT4 |
Spindle travel (mm) | 240 |
Spindle speed range (r/min) | 75~1220 |
Spindle speed steps | 6 |
Spindle feed range (mm/r) | 0.1~0.25 |
Feed steps | 3 |
Spindle nose to base (mm) | 120~860 |
Work table (mm) | 400×400×350 |
base (mm) | 1370×700×160 |
Machine dimension (mm) | 1407×720×1885 |
Motor power (kW) | 1.5 |
G.w./n.w. (kg) | 1425/1200,1450/1230 |
Packing size (cm) | 155×77×210,175×77×210 |
